Product Description

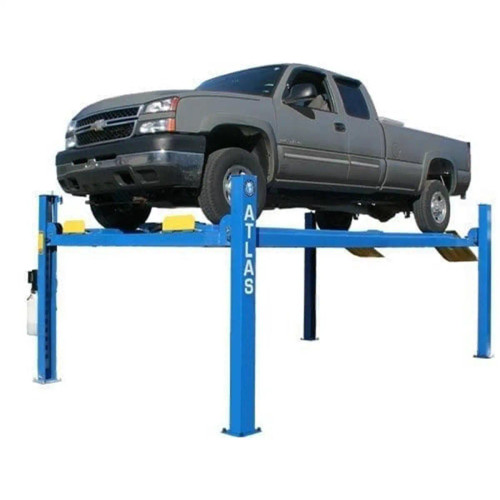

Atlas® 8,000 lbs 4 Post Lift Automotive Equipment Garage Pro 8000
ATEXH-PRO8000
The Atlas® brand above ground auto lift offers a competitive priced above ground auto lift that offers more features and benefits than the ever increasing number of "economy" auto lifts sold by no-name Internet marketers.
The portable Atlas® Garage Pro 8000 includes a caster kit with polyurethane wheels. The caster kit can be installed or removed in just a matter of minutes and requires no tools.
All Atlas® portable four post lifts (8,000 lb. capacity) are designed and built for use by Mr. Homeowner or restoration shop. These lifts are not designed to work in commercial repair shops that raise and lower a lift several times per day. If you have questions about which lift will best suit your application, please contact our sales team.
Features
- 8,000 lb. Capacity
- Atlas® Powder Coat Finish
- Single Point Lock Release
- Lock Ladder Design
- Double Lock Safety System
- Caster Kit With Polyurethane Wheels Included
- Anchor Bolts Optional (Sold Separately)
- Steel Approach Ramps Included
- Steel Jack Tray Included
- Four Plastic Drip Trays Included
- Four Wheel Stops Included
- Two Rubber Wheel Chocks Included
- Perfect For Storing Or Working On Vehicles
Includes
- 1 Jack Tray
- 4 Plastic Drip Trays
- Two Rubber Wheel Chocks
- Steel Approach Ramps
- 1 Caster Kit With Polyurethane Wheels
| Specifications | PRO 8000 |
| Capacity | 8,000 lbs |
| Lifting Height To Top Of Runway | 72" (6') |
| Clearance Under Runways | 67 1/2" (5' 7 1/2") |
| Height of Columns | 83" (6' 11") |
| Overall Width w/ Motor | 114" (9' 6") |
| Overall Width w/o Motor | 104 3/8" (8' 8 3/8") |
| Overall Length w/Approach Ramps | 207 1/2" (17' 3 1/2") |
| Overall Length w/o Approach Ramps | 175 1/2" (14' 7 1/2") |
| Approach Ramps | 37" (3' 1") |
| Runway Width | 18 1/2" (1' 6 1/2") |
| Runway Length | 165 1/2" (13' 9 1/2") |
| Runway Thickness | 4 ½" |
| Width Between Runways | 37 3/8" |
| Width Between Runway Rails | 31 3/4" |
| Outside Runway to Outside Runway | 74 3/4" (6' 2 1/4") |
| Size of Column | 6 1/4" x 3 3/8" |
| Clearance Between Columns | 94 1/2" (7' 10 1/2") |
| Length Between Columns | 157 1/2" (13' 1 1/2") |
| Base of Column | 10 1/8" x 11 3/4" |
| Maximum Wheel Base | 153 1/2" (12' 9 1/2") |
| Drive Thru (Outside of tire to outside of tire) | 80 1/2" (6' 8 1/2") |
| Cable Diameter | .350" |
| Gauge of Steel | 6 Gauge (.1875"/ 3/16" / 4.75mm) |
| Motor | 110V / 30 amp breaker is required. |
| Oil Requirement | 3-5 Gallons AW32/AW46 |
| Weight | 1,720 LB. |
| Locking Positions Under Runway (+/ - 2") |
Locking Positions Top Of Runway (+/ - 2") |
| 19 ½" | 24" |
| 25 ½" | 30" |
| 31 ½" | 36" |
| 37 ½" | 42" |
| 43 ½" | 48" |
| 49 ½" | 54" |
| 55 ½" | 60" |
| 61 ½" | 66" |
| 67 ½" | 72" |
|
