Product Description

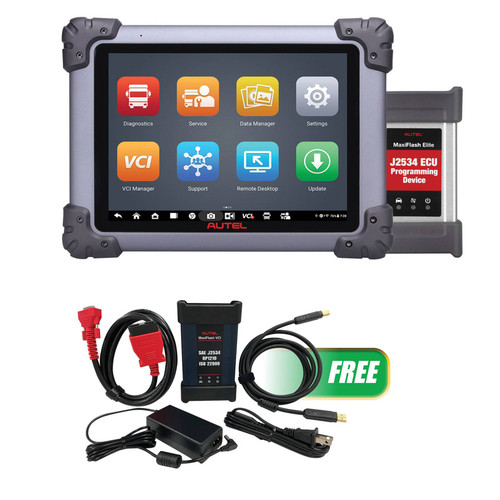

AutelMAXISYS Commercial Vehicle Diagnostics & Service Tablet Part #:AUL-MS908CVIIPRO

Get (1) MaxiFLASH VCI Kit FREE

(With class 1-9 coverage)

FEATURES

• 9.7” wireless touchscreen heavy duty vehicle diagnostics & service tablet

• Performs advanced diagnostics on class 1-class 9 heavy duty vehicles

• Read and erase codes, view live data, perform bi-directional active tests

• Expert mode for direct access to OE-specific system components including engine, transmission, and braking systems

• OE-level parameter changes, aftertreatment testing and resets

• Extensive service and maintenance functions menu including forced DPF & SCR regeneration, EPB and OLS resets

• Perform injector cutout tests, injector coding/programming

• Equipped with MaxiFlash wireless bluetooth VCI and J2534 passthru programming device

• AutoScan of all available modules / Wireless printing

• W/ Included AUL-MFVCIKIT

VEHICLE COVERAGE

• Light duty pickup
• Medium duty trucks
• Heavy duty trucks
• School buses
• Transit buses
• Recreational vehicles
• Emergency vehicles

The MaxiSYS MS908CVII is a 9.7" wireless touchscreen tablet with advanced diagnostics coverage for light-, medium-, and heavy-duty vehicles. All Systems fault detection via Auto Scan. Read and erase codes. View and graph live data. Perform Bi-directional control Active Tests and Special Functions. Expert Mode to enable technicians to access the system directly. Extensive service menu featuring over 40 service functions, including Forced DPF Regen, Oil Light and Maintenance Service Light resets, and Brake Bleed. Tablet features Android 10 OS, an Octa-Core processor and 128 GB of storage memory. Wireless printing. Includes one year of free software updates and is covered by a one-year limited warranty.

Complete Commercial Vehicle DiagnosticsAutel MS908CV II CV 2024 diagnostic tool can perform all-over diagnostics on 150+ brands of commercial vehicles, light duty, semi-truck, heavy duty trucks (from class 1 to class 9), buses and other special machinery. Besides the diagnostics, it features advanced ECU coding, bi-directional control and 23 adaptations and 25+ service functions including ABS brake bleed to help you fix any related issues. It also performs AutoSCAN and AutoVIN (2006+), and generates printable diagnostic reports.

25 Service + 23 Adaptation Functions Autel MS908CV II HD scanner can perform 25+ services like Oil Reset, Injector Coding, DPF, ABS bleeding, SAS, Throttle, Cylinder, Trans Adaptation etc, and 23 adaptation functions such as Boost Calibration, Rack Sensor Calibration, Timing Calibration, Monitor Throttle Position Sensor, Fuel Pressure Adaptation and etc. And those functions work perfectly for the 99% of commercial vehicles, for instance Freightliner, Kenworth, Peterbilt, International, Volvo, etc.

ECU Coding & J2534 VCI Box Same level as Maxisys Elite II Pro, this heavy duty truck scanner MS908CV II has the professional-grade ECU coding to help rematch the module replacement, and fix complex ECU-controlled problems for heavy machinery. The included J2534 pass-thus device is fully compatible with both SAE J2534-1 & 2, and also serves as wireless BT communicating box for up to 210ft. (70m) diagnostic range.

Bi-Directional Control(Active Test) Autel MS908CV II commercial vehicle diagnostic scan tool has full bi-directional control capability over various CV systems/ components, and is able to command the components to perform specific tests to pinpoint faults in the quickest way, It can conduct tests such as EVAP Test, Cylinder Test, Cylinder Compression Test, E-G-R Test, Window/ Door/ Roof Test, Fuel pump on and off, Cycling the a/c clutch on and off and more.

Autel MaxiFLASH VCI Kit : Bluetooth VCI/J2534 pass-thru programmer, Main Cable V2.0, AC/DC adapter and USB 2.0 cable

Features and Benefits:

• Compatible with the MaxiSYS MS909 diagnostic tablet
• Use with windows PC for vehicle module programming, J2534-1 & J2534-2 compliant
• Bluetooth-enabled communication interface
• Supports CAN FD, 4 CAN Channels, and DoIP
• Supports D-PDU, IS O22900-1 & ISO 22900-2
• Program BMW & Mercedes from MaxiSYS MS909 tablet
• RP1210 compliant
• Includes Main Cable V2.0, USB 2.0 cable, and AC/DC adapter
• Includes One-Year Limited Warranty
