Product Description

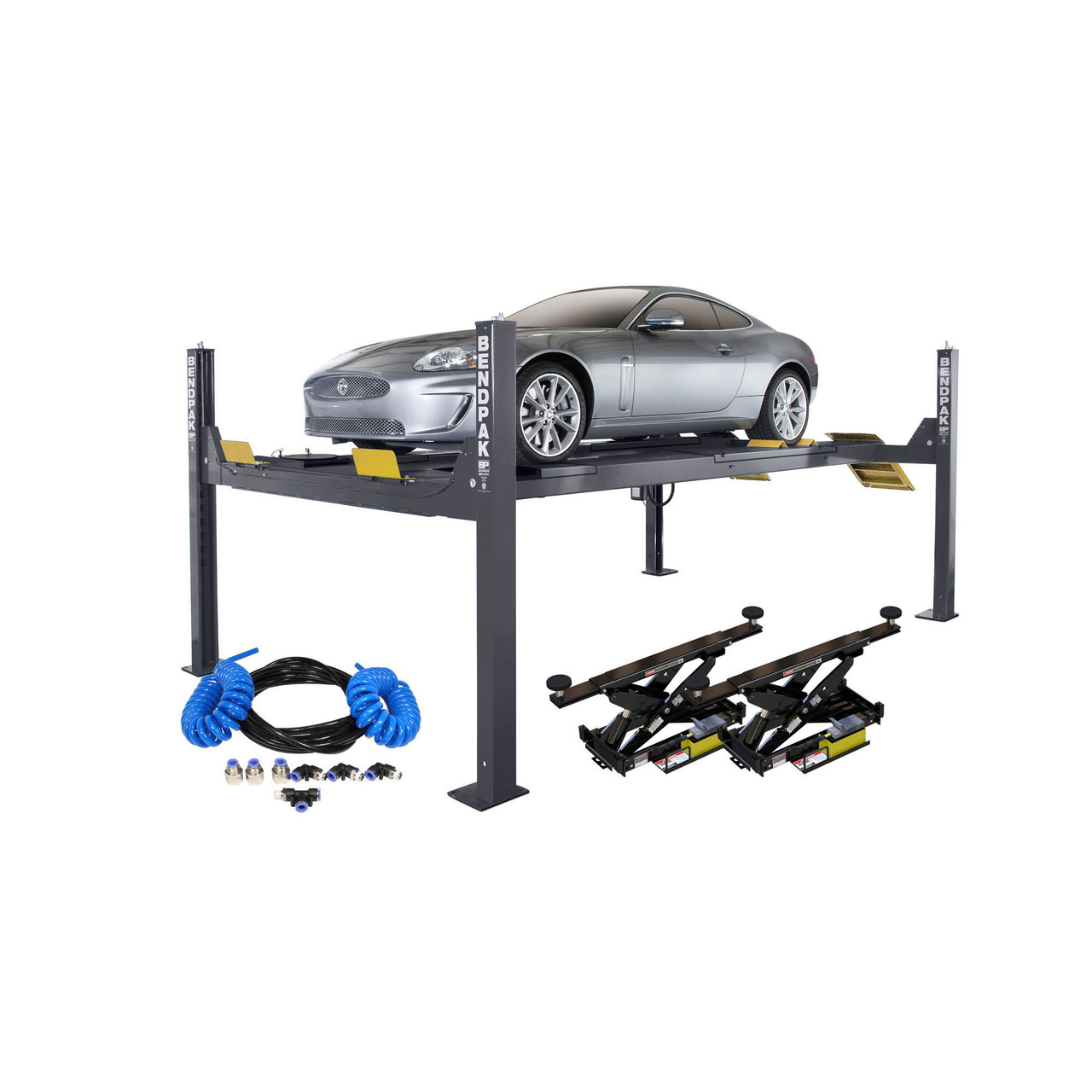

BENDPAK HD-14LSX+ (2) RJ7W + AIRLINE KIT PACKAGE
SKU: 5175898
Features
- CE Approved and Certified. Meets or exceeds the standards prescribed by European Standard EN 1493
- Two runway lengths to choose
- Heavy‐duty turn plates and integrated rear slip‐plates included
- Multi‐position turn plate pockets
- Automatic leveling system
- Multiple auto-leveling locking positions
- Runways include rail‐kit for optional accessories
- Electric / hydraulic power system
- Single hydraulic cylinder mounted underneath runway
- Fully enclosed lifting cables, safety locks, and sheaves
- Internal "Anti-Sway" slider blocks in each column
- Features oversize sheaves and heavy‐duty 1/2” aircraft cable
- Rugged 1‐3/8" roller axles and oversize self‐lubricating cable sheaves
- Multi‐position safety locks in each column with push‐button safety release
- Runways adjust for different tread widths and feature a durable matte finish
- Optional 7,000 pound capacity bridge jacks available (Model RJ7W)
Specifications
HDS-14LSX
| Style | Floorplate |
|---|---|
| SKU# | 5175171 |
| Lifting Capacity | 14,000 lbs. (6,350 kg) |
| *Max Capacity / Front Axle | 7,000 lbs. (3,175 kg) |
| *Max Capacity / Rear Axle | 7,000 lbs. (3,175 kg) |
| A - Min. Runway Height | 7.625" (194 mm) |
| B - Max. Rise | 70" (1,778 mm) |
| C - Max. Lifting Height | 77.625" (1,972 mm) |
| D - Overall Width | 130" (3,302 mm) |
| E - Outside Length | 213" (5,410 mm) |
| F - Overall Length | 241" (6,121 mm) |
| G - Height of Columns | 95" (2,413 mm) |
| H - Width Between Columns | 120" (3,048 mm) |
| I - Drive-Thru Clearance | 98" (2,489 mm) |
| J - Runway Width | 20" (508 mm) |
| K - Length of Runways | 199" (5,055 mm) |
| L - Width Between Runways | 37.5" (953 mm) or 51" (1,295 mm) |
| M - Min. 4-Wheel Alignment | 89" (2,261 mm) |
| N - Max. 4-Wheel Alignment | 156" (3,962 mm) |
| O - Max. 2-Wheel Alignment | 182" (4,623 mm) |
| Rated Capacity | 140" (3,556 mm) |
| 75% Capacity | 120" (3,048 mm) |
| 50% Capacity | 100" (2,540 mm) |
| 25% Capacity | 80" (2,032 mm) |
| Locking Positions | 13 |
| Lock Spacing | 4 |
| Motor | 220 VAC / 60 Hz / 1 Ph |
| Noise | 45 dB |
| Shipping Weight | 3,067-lbs. (1,391 kg) |
| Shipping Dimensions | 209" x 23" x 42" (5,308 mm x 584 mm x 1,066 mm) |
| Time to Full Rise | 60 seconds |
RJ7W
| SKU# | 5175249 |
|---|---|
| Lifting Capacity | 7,000 lbs. (3,175 kg) |
| Suitable Lift Model(s)/th> | HDS-14 Series, HDSO14P |
| Min. Drive-Over Height Pad Only | 4" (102 mm) |
| Min. Drive-Over Height Pad + 2.75" Adapter | 6.75" (171 mm) |
| Min. Drive-Over Height Pad + 5.5" Adapter | 9.5" (241 mm) |
| Max. Lifting Height Pad Only | 14.75" (375 mm) |
| Max. Lifting Height Pad + 2.75" Adapter | 17.5" (445 mm) |
| Max. Lifting Height Pad + 5.5" Adapter | 20.25" (514 mm) |
| Support Base Width | 36.25" (921 mm) - 46.5" (1,181 mm) |
| Max. Arm Reach | 56" (1,422 mm) |
| Min. Arm Reach | 42" (1,067 mm) |
| Time to Full Rise | 55 seconds |
| Pump | Air/Hydraulic |
| Air Pressure | 125 PSI (10-25 CFM) |
| Max. Operating Hydraulic Pressure | 4,550 PSI |
| Power Requirement | None |
| Shipping Weight | 440 lbs. (200 kg) |
| Shipping Dimensions | 42" x 25" x 15" (1,066 mm x 635 mm x 381 mm) |
AIRLINE KIT
Provide Air to Two Bridge Jacks at Once
Rolling bridge jacks are great for extending the functionality of your BendPak four-post lift, and they're about to get a whole lot better. Install this helpful kit and elegantly hide the airlines beneath your lift's own runways. This Airline Kit comes with all the accessories you need to connect both of your rolling bridge jacks to your air compressor with ease. The AK-14 Airline Kit comes with adapter fittings that allow you to connect airlines to your rolling bridge jack air/hydraulic pumps. With the fittings installed, you’ll only need one hose to provide air for both of your rolling bridge jacks. Not only does this simplify the process, but the fittings in the Airline Kit also allow you to hide the airline up and away, mounting the airlines securely to the bottom of your lift’s runways. Messy airlines not only look bad, but they are a major tripping hazard. The Airline Kit gives you peace of mind while you work and comes with everything you need to give your four-post lift, and your shop, a clean and efficient setup!
Specifications
| SKU | 5174009 |
|---|---|
| Shipping Weight | 3.5lbs |
| Shipping Dimensions | 12" x 5" x 12" |
