Product Description
REPLACED BY NEW MODEL: 10APX

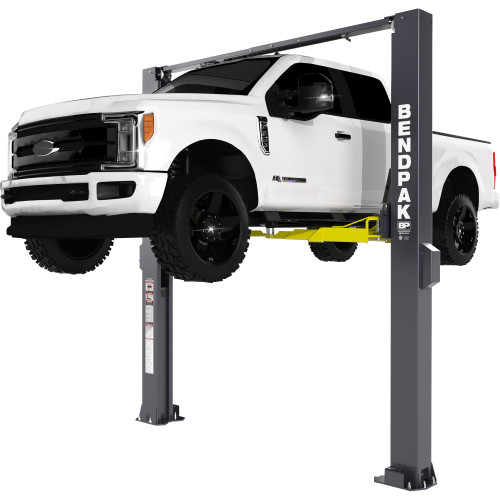

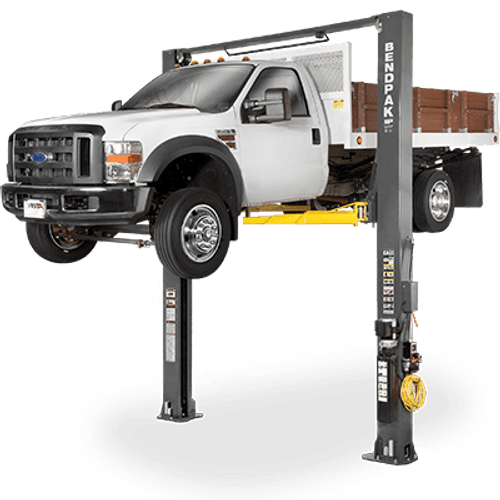

XPR-10XLS Symmetrical Lift
Offers MORE Lifting Height
10,000 Capacity / Symmetric / Adjustable Width / Screw Pads / HIGH RISE
Tall techs no longer have to strain themselves while they
work. The XPR-10XLS is a high-reach symmetrical two-post lift
that can be customized with an optional extension kit and/or
Low-Pro™ arms. Perfect for vehicles of all sizes. A must-have
tool to help taller techs stand upright while they work.
Lift arms shown with optional foot guards
- 10,000-lb. lifting capacity
- Expandable top beam accommodates wide or narrow
configuration
- Double-telescoping screw pads offer increased versatility
- Padded overhead safety shutoff bar
- Single-piece columns
- Dual hydraulic direct-drive cylinders
- Automatic arm restraints
- Lowered arm tube supports
- Maintenance-free UHMW load bearings
- Oversized 59" tall carriage for superior strength and
durability
- Electric / hydraulic power system
- Large, 17" x 19" A36 steel base plate
- Self-lubricating dura-glide UHMW polyethylene bearing
system
- Single-point safety release
- Safety locks in each column spaced every 3"
- Automatic overhead shutoff
- Plated arm restraints and arm pins for rust prevention
- Heavy-duty 1/2" aircraft-quality equalizer cables
- Oversized cable sheave diameter reduces cable fatigue
- 4-piece 63 mm stackable adapter set comes standard
- ALI Certified
XPR-10XLS
Style Symmetric / High Rise
SKU# 5175129
Lifting Capacity 10,000 lbs. (4,536 kg) 10,000 lbs. (4,536 kg)
A - Rise 75" (1,905 mm)
B - Rise + Pad 79.75" (2,026 mm)
C - Max. Lifting Height 82.25" (2,089 mm)
D - Min. Height + Pad 4.75" (121 mm)
E - Height Overall (*) 157" (3,988 mm)
F - Width Overall 132" (3,353 mm) or 145" (3,683 mm)
G - Outside Columns 126.75" (3,219 mm) or 139.75" (3,550 mm)
H - Inside Columns 105.5" (2,680 mm) or 118.5" (3,010 mm)
I - Drive-Thru Clearance 93" (2,362 mm) or 106" (2,692 mm)
J - Floor to Top Switch (*) 147" (3,734 mm)
K - Front Arm Reach (MIN) 25.5" (648 mm)
K - Front Arm Reach (MAX) 49.5" (1,257 mm)
L - Rear Arm Reach (MIN) 32.25" (819 mm)
L - Rear Arm Reach (MAX) 52.5" (1,334 mm)
Screw Pad Adjustment 2" (51 mm)
Max. Load per Arm 2,500 lbs. (1,134 kg)
Time to Full Rise 45 seconds
Noise 45 dB
Motor 220 VAC / 60 Hz / 1 Ph
