BENDPAK XPR-12CL-192 Extra Tall, 12,000 Lb. Capacity, Clearfloor, Triple-Telescope Arms-All Four

Product Description

DISCONTINUED: WILL RECEIVE XPR-12CL-LTA-192 12000-lb Capacity/Two-Post Lift/Clearfloor/ 72"Telescoping Arms

WHILE SUPPLIES LAST

FREE FRAME CRADLE PADS+ FREE TRUCK ADAPTER KIT

(NO LONGER INCLUDED: 4 DROP-IN URETHANE CONTACT PADS)

The safe and rugged XPR-12CL-192 two-post lift features extended height columns for added overhead clearance and an adjustable top beam to accommodate wide or narrow installation set-ups. The highly sophisticated yet simple and dependable XPR-Series design requires very little service or maintenance for an overall lower cost of ownership. All BendPak's XPR two-post models feature dual "direct-drive" low-pressure cylinders, maintenance-free UHMW load bearings, single-piece columns, extra-tall lifting carriages and triple-telescoping arm configurations for increased arm positioning versatility.

Our newest line of XPR-Series 2-Post lifts offers a wide selection of durable, safe and reliable systems for virtually every lifting application. Specifically, the powerful and secure super-duty XPR-12CL-192 is an incredibly rapid lift with a robust menu of features to increase efficiency and productivity, without overwhelming you with serviceable parts and necessary maintenance. The results are lower operating expenses and higher productivity. If you're looking to make more money in less time than ever before, you'll find that the new XPR-12CL-192 lift is the perfect addition to your shop— especially when you work with heavier vehicles that require larger lifting capacities.

But just because this super-duty model was designed for the big stuff doesn't mean it can't handle your light-duty work as well. The two-post XPR-12CL-192 easily has the capacity to lift your largest full-sized pickups and commercial vehicles, yet still provide specific capability for sport and compact cars, both foreign and domestic. The XPR-12CL-192 is a 12,000-lb. maximum capacity, close-top model lift with full-reach arms that collapse to standard lengths and lower lift pads that clutch standard passenger automobiles, yet still hold the big guys as well. The columns are also placed wider for trucks with fixed towing mirrors, and the overhead equalization beam is up and out of the way for those "high-cube" delivery vans. Sound complicated to operate? Don't worry. When it comes to ease of use, our dual-synchro equalization system and user-friendly controls are the stuff of legends.

All of BendPak's heavy-duty clearfloor model lifts feature dual "direct-drive" low-pressure cylinders that minimize leakage and reduce the workload placed on the entire hydraulic system. This exclusive BendPak design feature saves you maintenance costs throughout the life of your lift—you aren't going to find friendly sensibility like this anywhere else. Some more BendPak XPR-Series exclusives include: 16 individual maintenance-free UHMW load bearings, single-piece columns, triple-telescoping arms, extra-tall lifting carriages and oversized cable sheaves to vastly extend the life expectancy of moving suspension components. And, to better cater to your specific lifting needs, we offer similar model lifts with optional specialty arm configurations.

The entire XPR-Series is a reflection of BendPak's continuing commitment to producing lifts of only the highest quality, maximum safety and utmost reliability. Featuring the most advanced engineered technology available in the industry, these lifts are built to safety standards well above normal OSHA/ALI requirements. The XPR-Series lifts include a wealth of standard and optional features to support the operator's need for performance and security. Combined with BendPak's tradition of durable, reliable construction, the XPR-Series has become the new industry benchmark that others are sure to follow.

Whatever your requirements, there's a BendPak XPR-Series 2-Post lift designed to meet your needs. The XPR-Series offers an abundant roster of options and accessories that allow you to fully tailor your lift to your unique circumstance. But long before you start looking at options, you'll be impressed with the long list of standard features and capabilities packed into every BendPak XPR-Series lift.

Bottom line—when you buy BendPak, you can expect a significant boost in performance and life expectancy. In fact, your BendPak XPR-12CL-192 might be the last lift you ever purchase. No one surpasses us in quality and safety. Not now, not ever. When you get a BendPak, you get more than just a fantastic lift. You get peace of mind. That's the BendPak benefit.

Getting the right lift for your application is easy with the help of your local BendPak dealer or by investigating the customer focused product materials found on our website.

Every XPR-12CL-192 comes with:

Direct drive
BendPak two-post lifts feature low-pressure HVLP direct-drive cylinders eliminating the need for lifting chains or screw mechanisms most commonly found on other lift designs. Dual HVLP low-pressure cylinders minimize leakage and offer better reliability, smoother operation and less maintenance costs throughout the life of your lift. High-volume, low-pressure equates to less workload placed on the entire hydraulic system. Direct-Drive technology is preferred on commercial-grade two post car lifts as it has it has fewer moving parts than a chain-over-roller cylinder configuration. Pressurized hydraulic fluid flows from the power-unit, through the hollow cylinder rods then enters the cylinder body and fills the inside cavity. The pressure of the hydraulic fluid extends the piston rod downward raising the cylinder body and lift carriages. A dual-synchro equalization system maintains equal lifting and provides operators with a stable, level vehicle working condition.

Clearfloor convenience
Our clearfloor models provide unobstructed floor space allowing technicians to easily move toolboxes, transmission jacks, oil drains and other equipment underneath the elevated vehicle.

Triple-telescoping arm set
Three-stage front and three-stage rear arms provide maximum reach, as well as minimum retraction. Use this super-duty lift system for raising standard passenger vehicles and heavy-duty trucks.

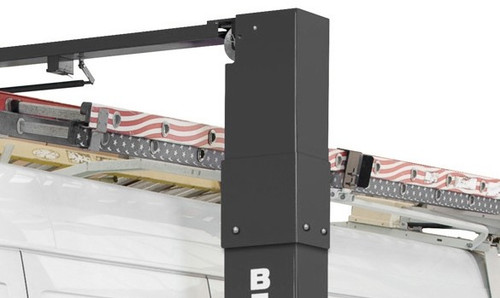

Optional column extension
Gives you the flexibility of increasing the overhead clearance to maximize the vehicles you can service.

Low-profile, dropped-end frame contact pads
Squeeze under even the lowest compact and sport vehicles.

12-Piece Adapter Set / Standard
Others might charge extra for these necessary adapters, but they're standard with every​ XPR-Series heavy-duty model. Multi-piece set includes four 6"​ stackable adapters, four 3" stackable adapters, and four frame cradle pads. Ideal for trucks and vans with running boards or auxiliary fuel tanks.

Lowered arm tube supports
To minimize the chance of damaging vehicles with low-hanging vehicle doors, we completely redesigned our arm tube supports to allow for better clearance.

Automatic arm restraints
Each arm is equipped with durable arm restraints that automatically engage each time the lift is raised. When the lift is lowered, the gear arm restraints automatically disengage to provide easy positioning of the lift arms.

Taller lift carriages
Take a close look at our lift carriages (the lifting assembly that the arms are attached to) and then take a look at the competition. You'll notice our 53" tall carriages are considerably taller than most, which minimizes the stress placed on the load bearings and columns.

Maintenance-free load bearings
Rather than using roller bearings that need to be constantly lubricated, every XPR-Series lift carriage uses high-tech UHMW (ultra-high molecular weight polyethylene) load bearings that never need lubrication and are designed to last the entire life of the lift.

Single-piece columns
We purposely manufacture the columns using single-piece construction for added strength and less fatigue under heavy load conditions.

Dual direct-drive technology
By utilizing two, low-pressure HVLP direct-drive cylinders, we've eliminated the need for lifting chains or screw mechanisms most commonly found on other lift designs. HVLP direct-drive technology offers better reliability, smoother operation and less maintenance. High-volume, low-pressure equates to less workload placed on the entire hydraulic system.

Single-point safety release
The single point safety release and "dead man" style operation controls makes every one of our XPR-Series lifts easy to operate and safe to use.

On the level
Our dual-synchro equalization system maintains equal lifting and provides operators with a stable, level vehicle working condition.

Auto shutoff
A rigid, padded safety shutoff bar automatically stops the lift should a vehicle come in contact with overhead structure.

Industrial-grade hydraulic cylinders
Integrated into every XPR-Series hydraulic cylinder is a one-piece, pilot fitted, machined steel piston that is wrapped with specially designed, pressure loaded U-cup piston seals, backups and wear bands that virtually eliminate any fluid bypass. The micro-smooth chrome-rod is machined from high-yield, ground and polished C-1045/50 micro-alloy steel and plated to a minimum of .001" diametrically, to ensure superior cylinder operation and life. The superior-design high durometer, mechanically-loaded rod seals make rod leakage is a thing of the past while a specially formulated abrasion-resistant urethane rod wiper provides exclusion protection. The welded cylinder body is made from robust steel tubing produced to exceed​ ASTM specifications. This combination of superb base material and superior processing ensures that the cylinders remain straight, smooth and last a very long time.

High-speed hydraulics
Free-flow, high-pressure 3/8" hydraulic lines, a high-flow pump and integrated AC power-unit increase ascent and descent speed rates for enhanced productivity.

Durable powder-coat finish
All XPR-Series lifts feature a durable powder-coat finish that gives the metal a high-quality, extremely durable finish which can withstand even the harshest environmental or chemical conditions. Unlike other companies that claim to powder coat, we take pride in our meticulous 10-step process. First, all parts are visually inspected before being sandblasted. Afterwards, the parts are washed in our 5-stage phosphate tanks that can accommodate parts up to 25' long. Once cleaned, they're immediately dried to avoid rust production, and then outgassed. Outgassing pre-bakes the parts in a curing oven, reducing the possibility of blemishes that may be hiding in the pores of the metal. If not properly outgassed, imperfections in the metal may bubble during the curing process and most likely will cause chips in the powder. After the parts are washed and outgassed, any surfaces and / or threaded holes that need to be masked or plugged, are done so with high-temperature masking tape and silicone plugs. Next, the parts are given a quick thinner wipe to remove any light debris or fingerprints, before being hung on an electrostatically grounded conveyor line. The powder is finally applied using an electrostatic spray gun. The powder "sticks" to the surface in a fashion similar to how dust sticks to a television screen. Once the parts are powder coated, the carts are rolled into our curing oven and baked at 400° F for 45 minutes.

Detailed instructions
Included with every lift are detailed installation and maintenance instructions, graphic safety decals, maintenance decals, vehicle lifting point guide and a safety instruction placard to train personnel on proper safety procedures and maintenance guidelines.

* CE Approved and Certified. Meets or exceeds the standards prescribed by European Standard EN 1493. Not all BendPak lift models meet the standards as prescribed by ANSI/ALI ALCTV-2006 or ANSI/UL 201.

• Extended overhead height provides additional clearance for high-profile vehicles
• 12,000‐lb lifting capacity
• Padded overhead safety shutoff bar
• Taller column height provides greater overhead clearance
• Single-piece columns / model XPR-12CL
• Bolt-on column extensions / model XPR-12CL-192
• Single-point safety release
• Drop-end arms provide a lower pad height
• Dual hydraulic direct-drive cylinders
• Oversized 53" tall carriage for superior strength and durability
• Electric / hydraulic power system
• Oversized A36 steel base plate
• Self-lubricating dura-glide UHMW polyethylene bearing system
• Safety locks in each column spaced every 3"
• Triple-telescoping front and rear arms
• Automatic arm restraints
• Heavy-duty 1/2" aircraft-quality equalizer cables
• 6” diameter machined steel cable sheaves reduces cable fatigue
• 8-piece truck and van adapter set STANDARD

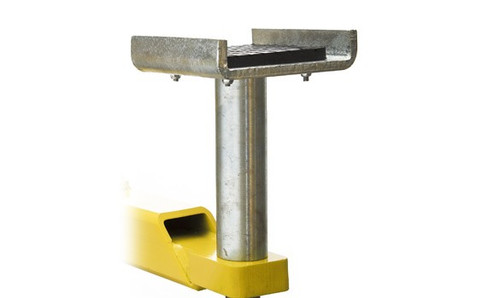

• Frame cradle pads STANDARD
• ALI certified

* CE Approved and Certified. Meets or exceeds the standards prescribed by European Standard EN 1493. Not all BendPak lift models meet the standards as prescribed by ANSI/ALI ALCTV-2006 or ANSI/UL 201.
