Product Description

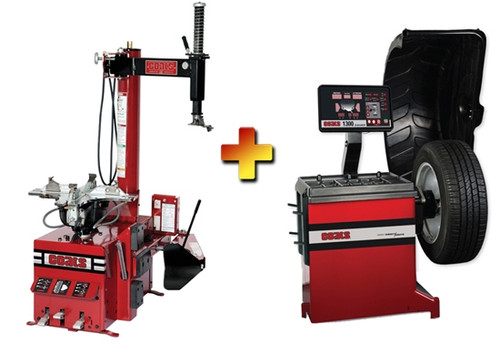

Coats® 1300 Direct Drive Wheel Balancer & RC-55A or RC-55E
| Specifications | 1300 |
| Balancing Modes | 8 |
| Wheel Diameter Range | 8" to 30" |
| Wheel Width Range | 2" - 20" |
| Maximum Tire Diameter | Up to 44" |
| Maximum Tire Weight | 150 lbs. |
| Shaft Diameter | 40 mm |
| Interface | LED |
| Automatic Data Entry | Distance/Diameter |
| Resolution (Round Off Mode) | 0.01 oz |
| Electrical Requirements | 220v / 1ph or 220v / 3ph |
| Warranty | 3 Year Parts, 6 Months Labor |
| Footprint | 78" H x 60" W x 60" D |
| Shipping Weight | 639 lbs. |
| Part Number | 80013002D - 1ph 80013002D01 - 3ph |
Included Accessories with balancer
| Part Number | Descriptions |
| *8112098 | Small A Cone |
| *8112099 | Medium B Cone |
| *8112100 | Large C Cone |
| *8112101 | Light Truck Back Cone - D Cone |
| *85607780 | Premium Wheel Weight Hammer |
| *8110542 | Small Pressure Cup & Rubber Lip |
| *8112107 | Spring |
| *8309011 | Calipers |
| *8112103 | Hub Nut |
The Coats® RC Series - Built upon the standards of the legendary Coats Rim Clamp® tire changers.
Updated for today's high-speed, general service repair shop, the RC Series will execute day after day, which your shop not only demands, but also deserves. With proven performance through decades of testing, the RC Series Rim Clamp tire changers are built from strong, reliable components that offer more power and longevity for everyday use.
The RC Series will feature two models, the RC-55 and the RC-45.
RC Robo-Arm® (RC-55 Model Only)
Effortlessly keeps the top bead in the drop center during mounting, allowing technicians to efficiently change difficult wheel applications, such as low-profile wheels and run-flat tires, commonly found on many OE vehicles.
Built-in Bead Sealing Jets
Quickly seal beads while tabletop inflation provides a faster workflow.
High Torque, X-Shaped Turntable
Designed for rigid perimeter support of the wheel. Pedal controls make tire mounting and dismounting easier for technicians, especially when working in high volumes.
Manual Swing Arm
Easily adjusted so that the Coats Duckhead® Mount/Demount Tool is properly fitted to the tire rim. This will reduce the risk of damage when mounting and demounting the tire.
Conveniently Placed Foot Pedals
Provide precise control over every step of the changing process. The pedals are ideally placed for fluid technician movements while mounting and demounting tires.
Inflation Gauge
Easily and accurately inflate from 0 to 60 PSI. With a pressure limiter and easy-to-read gauge, the built-in tire inflation system ensures technician safety and prevents TPMS related comebacks.
Wheel Protection
Available options include bead loosener socks, clamp booties and lift tool protection to prevent metal-to-metal contact that causes scratching or marring.
SPECS
| Weight (lbs) | 620.00 |
| Operation | 1st Loosen Bead, 2nd Mount/Demount |
| Wheel Handled | Alloy & Steel, Car & Light Truck |
| Mount / Demount | Swing Arm |
| Tool Head Offset | Manual |
| Table Shape | X-Shaped |
| Wheel Clamping Method | Four Clamps, Air Cylinder Operated |
| Height of Table to Floor | 28.5" (724 mm) |
| Bead Loosening System | Foot-Controlled Air Cylinder (up to 10.5" wide) |
| Bead Lifting System | Tire Bar |
| Air Drive System | 1.5HP Air Motor 110-175psi, 15scfm |
| Electric Drive System | 1HP Electric Motor, 110v, 60hz, 15amp |
| Inflation Pressure Control | Limiter |
| Assist Arms/Tools | RC-Robo Arm |
| Clamps | Fixed (2 Position) |
| Bead Seating Reservoir | Vertical 3.4 Gal. in Tower |
| Inflation Gauge | 60 psi |
| Air Supply Gauge | 0-300 psi |
| Water Filter/Lubricator or Oil Injector | Filter / Lube |
| Optional Protectors | Plastic Inserts for Metal Mount/Demount Duckhead Tool, Clamp Socks |
| Min / Max Rim Diameter | 6"–24" External |
| Max Rim Width | 10.5" (267mm) |
| Max Tire Diameter | 50" (1270mm) |
| Rotation Speed | Electric = 1 Speed, Air = Variable |
| Chassis Footprint | 35"w x 44"d x 75"h |
