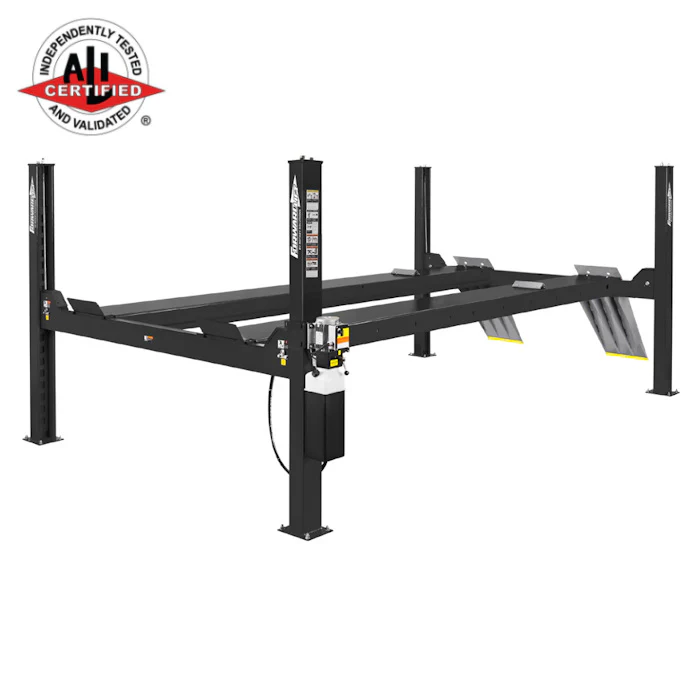

FORWARD CR14 – Four-Post Lift

Features & Specs

• 14,000 lbs. capacity
• Heavy duty hydraulic cylinder
• Single Point latch release system
• One piece formed runway design incorporates rolling jack channels
• Multiple position latch points in each structural leg
• Capacity: 14,000 lbs. (6350kg)
• Rise: 78-3/4" (2000mm)
• Maximum Wheelbase: 182-1/2" (4635mm)
• Overall Length: 250" (6350mm)
• Overall Width**: 131-3/4" (3346mm) / 140-1/2" (3569mm)**
• Width Inside Columns: 116-1/4" (2953mm)
• Length Between Columns: 195-1/4" (4959mm)
• Overall Height: 90-1/2"" (2299mm)
• Runway Width: 20" (508mm)
• Runway Height: 7" (177.8mm)
• Width Between Runways: 43" (1092mm)
• Rise Time: 72 seconds
• Voltage*: 208v/230v
• Amps: 17
• Motor: 2HP
• Minimum Bay Size: 15' x 25' (4572mm x 7620mm)
• * single phase standard; 3-phase available at additional cost
• ** Spec varies with power unit location
