Product Description

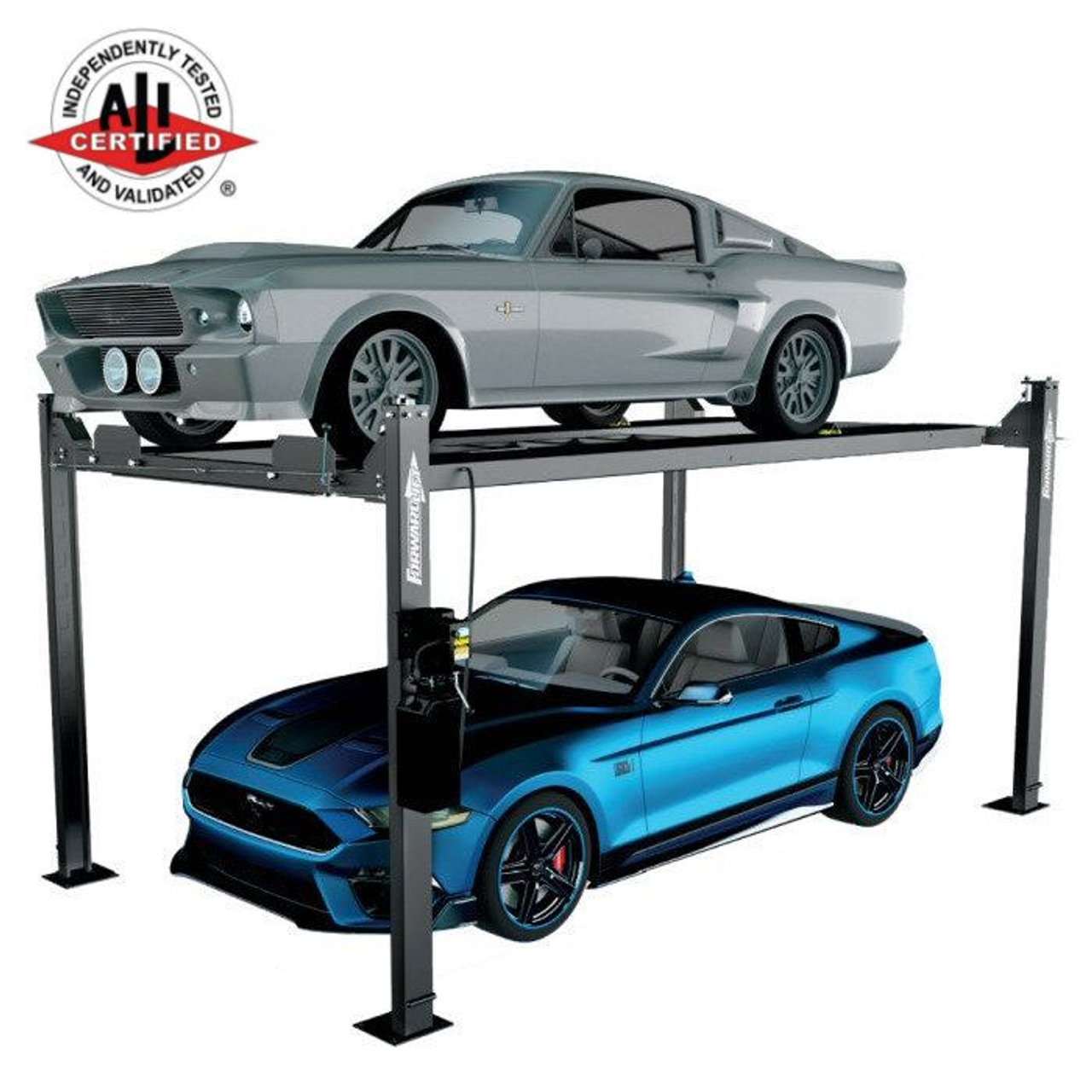

FORWARD EFP8 – Four-Post Lift 110V
The EFP 8,000-pound capacity four-post lift, perfect for the home enthusiast, includes a jack tray, wheel caster kit, and dip trays. Additional features include ALI/ETL-certified multi-position locks that allow runways to be level at any lock position, a single-point lock release, steel approach ramps, and a powder-coat finish.
FEATURES
- Powered with standard 115 Volt plug
- Steel approach ramps
- Four runway drip trays
- One bottle jack tray (4,500 lbs. Capacity)
- Poly caster kit (4)
- Durable black powder coat finish
- Gold Certified
- Commercial Grade
- Exclusive Lock Ladder System
- Multple Locking Positions
- 20" Runways
- Operate Lift from One Column
SPECIFICATIONS
|
Capacity |
8,000 lbs. |
|---|---|
|
Rise |
72-1/2″ |
|
Overall length w/ approach ramps |
207-1/2″ |
|
Overall length w/o approach ramps |
175-1/2″ |
|
Overall width w/o motor |
103-1/2″ |
|
Approach ramp Length |
32″ |
|
Runway width |
18-1/2″ |
|
Runway length |
169-1/2″ |
|
Runway height |
4-1/2″ |
|
Height of columns |
81-1/2″ |
|
Clearance between columns |
94″ |
|
Clearance between runways |
38″ |
|
Outside runway to outside runway |
75″ |
|
Clearance under runway |
68″ |
|
Motor specs |
110VAC, 1HP |
Specifications subject to change without notice or liability
