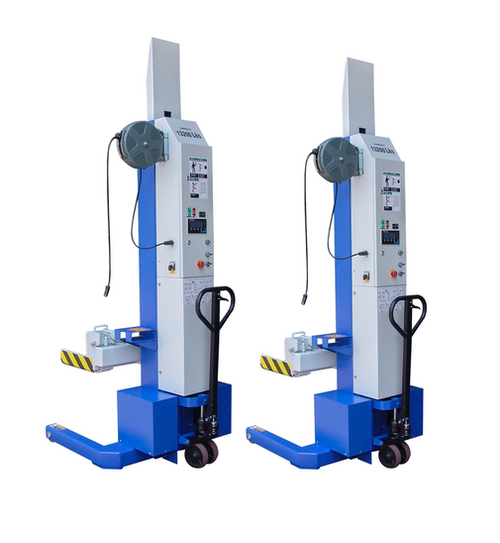

iDEAL MSC-13K-B-452 13,200 LB. Ideal Mobile Column Lifting System
MSC-13K-B-226 SET OF 4
FEATURES
Easy to use master controller for individual or paired synchronized operation
Siemens PLC and Electro-Optical encoder provide continuous synchronization of all columns
Adjustable lifting forks accommodate the widest range of wheels
Easily positioned with pallet jack style wheel
Heavy-duty hydraulic system
Large carriage bearings provide durable, fast and easy lifting

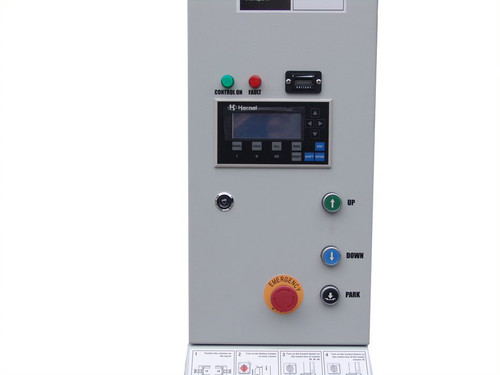

LCD screen with keyboard offers easy to read visuals of settings and lifting height
Independent mechanical locking system
Emergency switch on each column provide highest safety assurance
Optional jack stands available
Batteries NOT included
SPECIFICATIONS
OEM Item # / Model #: 167215B / MSC-13K-B
Capacity: 13,200 lbs. / Each Column
Pressure Relief Valve: 2,030 psi Sealed Ex-Works
Pump motor: 3HP ( DC24V, Max 110Amper ) / Each Column
Battery charger power supply: Input: 100-140 , 60Hz, single phase / Output: 24VDC, Max 15Amper
Operational Voltage: 24 VDC
Lifting Height: 67.1"
Column L / W / H: 45.7” / 44.1” / 88.6” (Max Ht. 155.5”)
Fork Adjustable Range: 6.3” - 22”
Fork length: 14”
Lifting / Lowering Time: 75 sec/ 60 sec at load of 13,200 lbs. / each column
Noise Level: Max. 70 dB(A)
Set-up: Indoors
Unit Weight: 1,200 lbs. per Column
Maximum Distance between Columns: 32.8'
Min. Concrete Surface Strength: 3000 Psi
