Product Description
ADDITIONAL FEES MAY APPLY FOR SHIPPING BASED ON ORDER DETAILS- CALL FOR BEST SHIPPING QUOTE

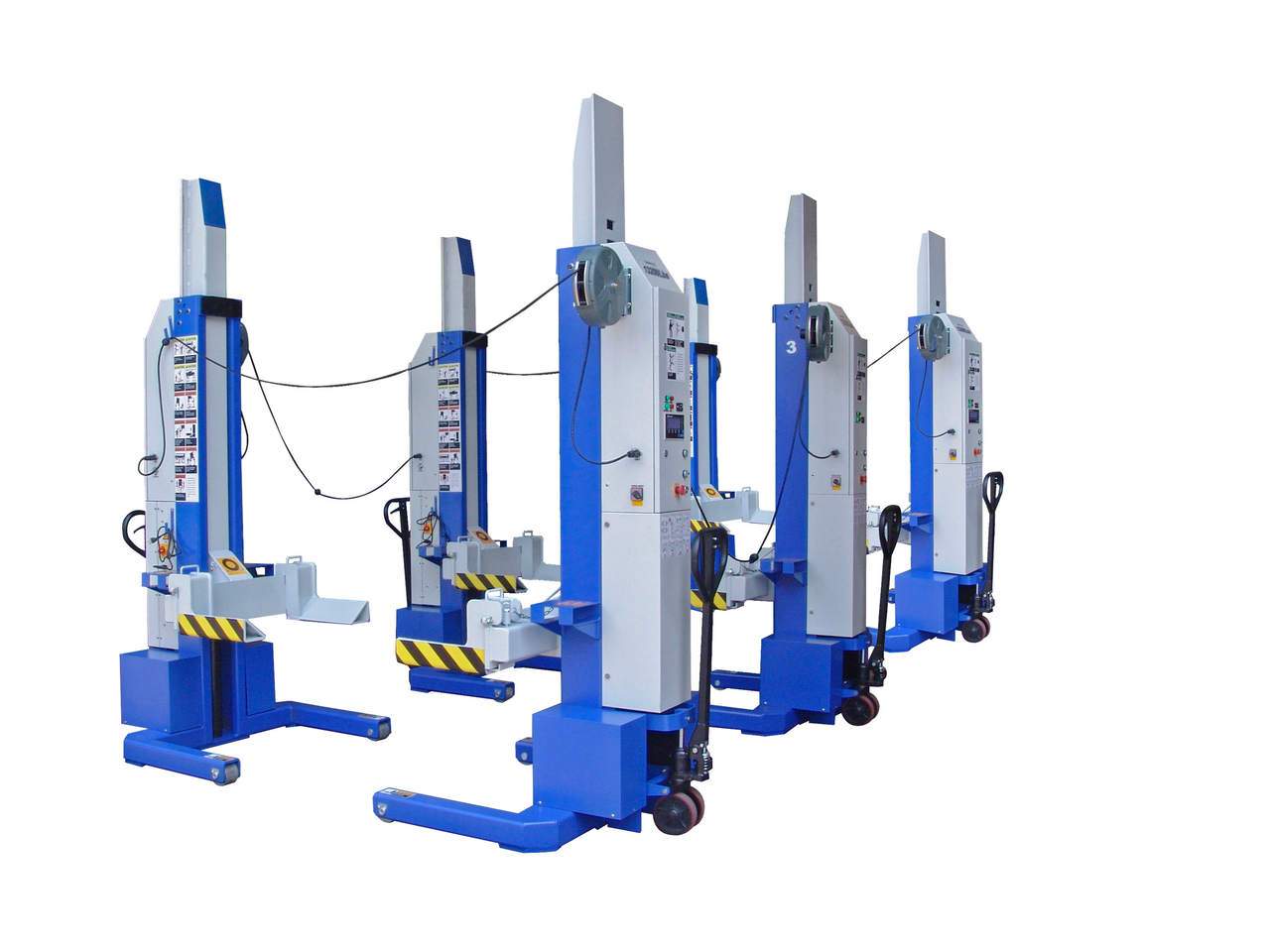

iDEAL MSC-13K-B-678 13,200 LB. Ideal Mobile Column Lifting System
MSC-13K-B-678 SET OF 4
FEATURES
- Easy to use master controller for individual or paired synchronized operation
- Siemens PLC and Electro-Optical encoder provide continuous synchronization of all columns
- Adjustable lifting forks accommodate the widest range of wheels
- Easily positioned with pallet jack style wheel
- Heavy-duty hydraulic system
- Large carriage bearings provide durable, fast and easy lifting
- LCD screen with keyboard offers easy to read visuals of settings and lifting height
- Independent mechanical locking system
- Emergency switch on each column provide highest safety assurance
- Optional jack stands available
- Batteries NOT included
SPECIFICATIONS
OEM Item # / Model #: 167215B / MSC-13K-B-678
|
Capacity |
13,000lbs per column / 78,000lbs total |
||
|
AC Power (Input, Per Column) |
100-140VAC, 60Hz, 1 PH |
||
|
DC Power (Output, Per Column) |
24VDC |
||
|

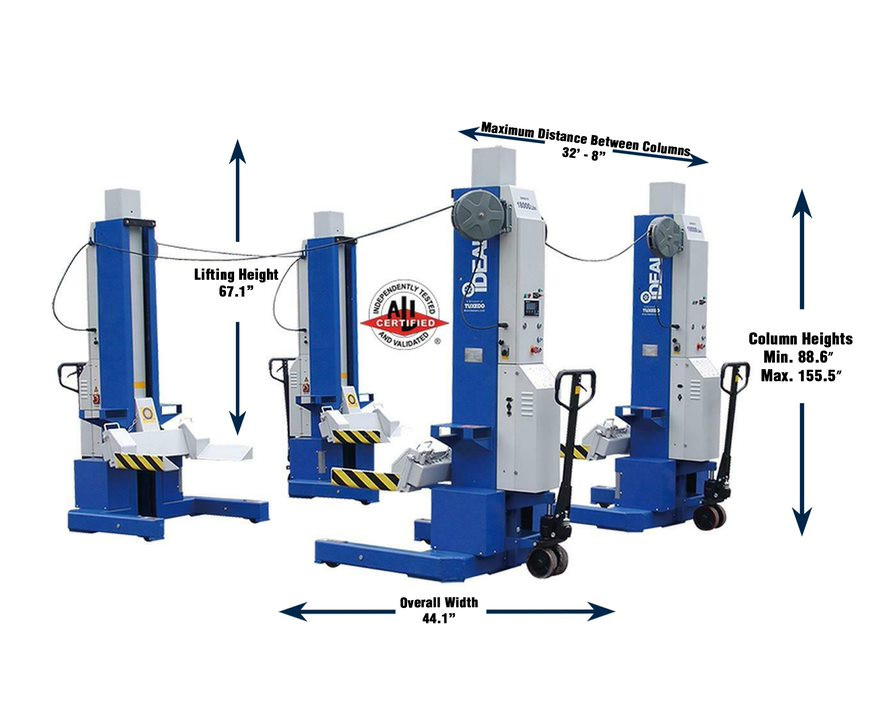

Lifting Height |
67.1″ |
||
|
Column Heights – Min/Max |
Min. 88.6″ / Max 155.5″ |
||
|
Overall Width |
44.1″ |
||
|
Fork Adjustable Range |
6.3″ – 22″ |
||
|
Fork Length |
14″ |
||
|
Fork to Column Clearance |
9.3″ |
||
|
Rise Time |
75S |
||
|
Descent Time |
60S |
||
|
Maximum Distance between Columns |
32.8′ |
||
|
Minimum Concrete Surface Strength |
3000 PSI |
||
|
Noise Level |
70 dB(A) |
||
|
Set-Up / Operation |
Indoors |
||
|
Battery Type (Not included) |
12VDC Sealed Deep Cycle Battery (BCI Group 31, AH-105) |
||
|
Ship Weight |
1,210 lbs per Column |
||
Pressure Relief Valve: 2,030 psi Sealed Ex-Works
Pump motor: 3HP ( DC24V, Max 110Amper ) / Each Column
Battery charger power supply: Input: 100-140 , 60Hz, single phase / Output: 24VDC, Max 15Amper
