Product Description

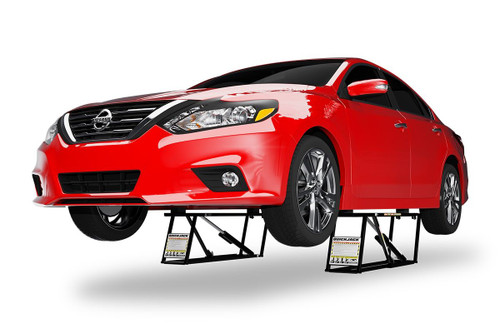

QuickJack 6000ELX-110V Extended-Width Portable EV Car Lift
Overview
Why did we make the 6000ELX portable car lift system? The ELX has the distinction of being our only car lift series to feature a single model. Its frames are super-long, even longer than our extended-length TLX series. This frame length is ideal for extremely long wheelbases, so this model fits virtually all contemporary EV cars, including top-end, luxury electric vehicles with lift points that run to the extreme edges of the vehicle frame. QuickJack's cantilevered frames are specially designed so they won't rub against your vehicle's tires as they rise. And since every QuickJack is a premium QuickJack, you get the same open-center car lift design and rolling portability of our TL and TLX models. Of course, it also comes standard with automatic safety locks.
Features:
- Extended lift point spread
- One-touch button control
- Built-in hydraulic flow divider
Specifications:
Lifting capacity
6,000 lbs. (2,722 kg)
Lowered height
A - Frame only: 3.5" (89 mm)
B - With 2" block: 4" (102 mm)
Lifting height
D - With 2" block: 21.5" (546 mm)
E - With 3" block: 22.5" (572 mm)
F - Max. height: 24.5" (622 mm)
G - With adapters: 24.25" (610 mm)
H - With adapters + pin: 7" (686 mm)
Compare All Specifications
Lift point spread
I - Maximum: 76" (1,930 mm)
J - Minimum: 53" (1,346 mm)
Frame dimensions (ea.)
K - Width: 12.5" (318 mm)
L - Length: 86.75" (2,203 mm)
A - Height: 3.5" (89 mm)
Weight: 112 lbs. (51 kg)
Other specs
Time to full rise: 30 seconds
Power unit weight: 30 lbs. (13 kg)
Shipping dimensions (ea. frame):
89.75" (L) x 16.75" (W) x 6" (H)
(2,279 mm x 425 mm x 154 mm)
89.75" (L) x 16.75" (W) x 6" (H)
(2,279 mm x 425 mm x 154 mm)
Shipping weight: 318 lbs. (144 kg)
In The Box
6000ELX Left Frame Assembly
6000ELX Right Frame Assembly
1x Hydraulic power unit with control
4x Medium rubber lift blocks (2")
4x Tall rubber lift blocks (3")
2x Short hydraulic hoses
2x Long hydraulic hoses
2x Frame-positioning handles
Fittings and thread tape for setup
Instruction manual
Requirements:
3 liters of Automatic Transmission Fluid
Air source to inflate air cylinders up to 50 PSI
Assembly tools
Note: QuickJack is shipped in three boxes
