Product Description

If you can find a lower Ranger price, let us know, We will not be undersold!

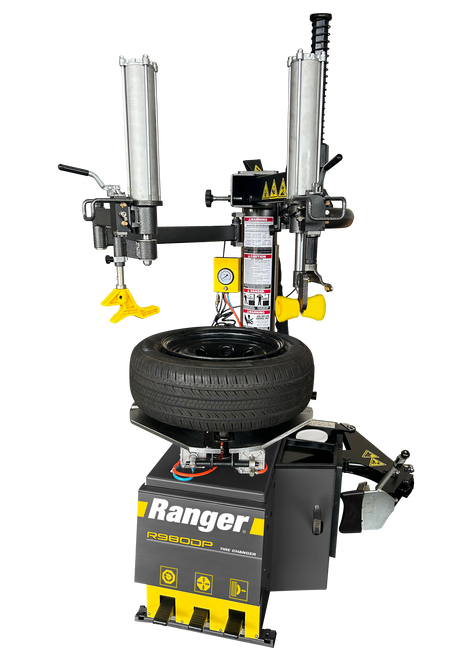

R980AT-220V TIRE CHANGER SPECIFICATIONS

Features & Specs

• Air Requirement 140 - 165 psi (10-11 BAR)
• Wheel Clamping Method
• 4 Clamps - Internal / External
• Table Clamping System
• Dual Pneumatic Cylinders
• Bead Breaking System
• Pneumatic Blade / Dual Settings
• Power Assist Towers
• Single Assist Tower
• Tool Holder
• Manual Lock
• Inflation Gauge With Integrated Air Dump Valve
• Inflation Pressure Regulator/Limiter
• Water Filter
• Oiler / Lubricator
• Air Regulator
• Breaker Bar
• Large Soap / Lubricator Bucket
• Brush
• Tower Design
• Rigid Fixed / Swing Arm
• Bead Lifting Roller(s)
• Single Lifting Roller
• Alloy-Steel Mount/Demount Head
• Plastic-Polymer Mount/Demount Head
• Upper Bead Assist Roller
• Traveling Drop-Center Hold Down Device
• Inflation Restraint Device
• Bead Seating System
• Turbo Blast / Bead Seating
• Tool Tray / Bin Storage
• Motorcycle Turntable Clamps (Optional)

Style:

Fixed Tower Design

Assist Type:

Single-Tower Assist

Speed:

Standard

Motor

3 HP (220 VAC 50-60 HZ)

Drive System Type

Electric / Air

Air Requirement

140-165 PSI (10-11 BAR)

Wheel Clamping Method

4 Clamps - Internal / External

Table Clamping System

Dual Pneumatic Cylinders

Bead Breaking System

Pneumatic Blade / Dual

Tower Design

Rigid Fixed / Swing Arm

Power Assist Towers

Single Assist Tower

Bead Lifting Roller(s)

Single Lifting Roller

Bead Seating System

Turbo Blast / Bead Seating

Internal Rim Clamping Capacity

10” - 30” (254 mm - 762 mm)

External Rim Clamping Capacity

9” - 28” (229 mm - 711 mm)

Turntable Tire Width Capacity (Mounting)

4” - 18” (102 mm - 457 mm)

Bead Breaker Tire Width Capacity (Demounting)

1.5” - 16” (38 mm - 406 mm)

Maximum Tire Diameter

50” (1,270 mm)

Shipping Weight

904 lbs. (410 kg)

Shipping Dimensions

51'' x 45'' x 73'' (1,295 mm x 1,143 mm x 1,854 mm)

DST30P-110-220V WHEEL BALANCER

Features & Specs

• Dynamic, Static, and Performance Alloy settings
• A multi-user save function holds presets to increase productivity
• An ergonomic control board and easy-to-read LED display has vibrant visual cues and keypad to improve efficiency and proper balancing techniques for faster floor-to-floor times
• A simultaneous retrieval of static, dynamic and ALU1/ALU2 data, identifies weight placement configurations for a variety of wheel styles and designs with the simple push of a button
• Automatic rolling wheel parameter setting feature saves valuable time and minimizes errors
• Low RPM balancing speed and rapid six-second cycle time
• Automatic braking
• Gram/ounce selection and millimeter/inch selection
• Automatic round-off with top-dead-center weight position indicator
• Manual or automatic start when hood is lowered
• Self-calibration function
• High-volume top weight tray and side shelf storage gives you room to inventory a wide variety of wheel weights and tools
• Newly designed side shelf features an open-top design that accommodates Ranger Quick-Peel™ adhesive tape weight convenient bulk rolls
• Precision-machined, hardened-steel 36 mm shaft
• Quick-release hub nut for dramatically reduced set-up times
• Side-position brake hold wheels at precisely 12-o’clock for proper weight placement
• Side cone storage pegs keeps accessories readily available
• New “open-side” hood design allows for a broader coverage of tire shapes and sizes

Style:

Auto & Light Truck

Data Entry:

Manual

Motor

1.5 HP, 110V, 50 / 60 Hz, 1Ph

Working Temperature

-5°C / 27°F - 50°C / 82°F

Cycle Time

6 - 9 Seconds (avg.)

Balancing Modes

Dynamic / Static / 3-Alloy

Drive System

Belt Drive

Wheel Braking

Automatic / Electronic

Cones Included

3 Standard / 1 Truck

Max. Tire Diameter

50” (1,270 mm)

Max. Tire Weight

150 lbs. (68 kg)

Wheel Diameter Capacity

8” - 30” (254 mm - 672 mm)

Wheel Width Capacity

1.2” - 20” (30 mm - 508 mm)

Balancing Increments

0.25 oz (7 gram)

Balancing Speed

180 RPM

Accuracy

+/- 1 gram (.035 oz)

Resolution

0.01 ounce, 1.4°

Shipping Weight

398 lbs. (181 kg)
