Product Description
ADD TO CART FOR DISCOUNT
If you can find a lower Ranger price, let us know, We will not be undersold!

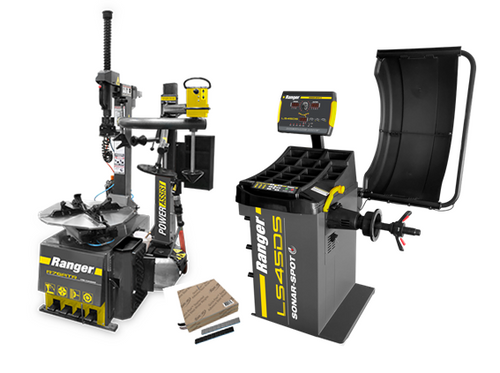

R980DP 220V
WITH DUAL ASSIST TOWER / 30" CLAMPING CAPACITY (SKU: 5140174)
(THIS MODEL REPLACED THE R980AT)
The R980DP is the latest addition to Ranger’s already impressive tire changer lineup. Its compact design makes it perfect for small or cramped tire shops. Because it features a swing-arm design, it can be installed flush against a wall to maximize your floorspace. This updated model also comes equipped with two assist tower to give you the help you might need when working on stiff sidewalls, run-flats, and other low-profile tires.
FEATURES:
- Wheel Clamping Method
- Electric Turntable
- TurboBlast Bead Setting
- Dual Pneumatic Cylinders
- Bead Lifting Roller
- Tool Holder
- Water Filter
- Oil / Lubricator
- Air Regulator
- Brush
- Lubricator Bucket
- Alloy-Steel Mount / Demount Head
- Plastic-Polymer Mount / Demount Head
- Inflation Pressure Regulator/Limiter
- Inflation Gauge w/ Integrated Air Dump Valve
LS45DS 220V
W/Flange Press Plate 208-240V, 50/60HZ 1PH
The LS45DS is the latest addition to Ranger’s lineup of high-quality wheel balancer. This sonar wheel balancer has been built from the ground up to save you precious time when you’re in the shop. Save time and money with Ranger.
The Ranger LS45DS Sonar Wheel Balancer is the latest innovation in wheel balancing technology, designed to revolutionize the way automotive shops approach balancing jobs. From its advanced sonar capabilities to its precise laser-spot technology, the LS45DS brings a level of speed, accuracy, and user-friendliness that makes it indispensable for high-volume and specialty shops alike. This isn’t just another wheel balancer—it’s a complete system engineered to maximize productivity, minimize mistakes, and enhance customer satisfaction. At the heart of the LS45DS lies its revolutionary sonar technology, a game-changing feature that automatically detects the wheel’s width. This level of accuracy drastically reduces the chances of improper weight placement, leading to fewer customer returns. For any shop owner, minimizing comebacks is crucial—not only does it save time and resources, but it also boosts customer trust and retention.
Features
- Dynamic, static, aluminum, HID (hidden) balancing
- Multi-user save function holds presets to increase productivity
- Ergonomic control board and easy to read LED display
- Open-sided hood design allows for a broader coverage of tire shapes and sizes
- Automatic rolling wheel parameter setting feature saves time, minimizes errors
Specifications
- Model: LS45DS
- Motor: 220 VAC, 3A, 50/60 Hz, 1 Ph, 0.55kW
- Drive system: Belt Drive
- Working temperature: 27°F – 82°F (-5°C – 50°C)
- Operating temperature: 41°F – 122°F (5°C – 50°C)
- Balancing modes: 1 dynamic / 1 static / 3 aluminum alloy / 1 hidden
- Maximum tire diameter: 43" (1092 mm)
- Maximum wheel weight: 145 lbs. (65 kg)
- Max. wheel diameter: 12" – 24" (305 mm – 610 mm)
- Wheel width capacity: 4" – 20" (102 mm – 508 mm)
- Balancing increments: 0.01 oz (0.25 grams) or 0.25 oz
- Accuracy: ± .035 oz (1 gram)
- Resolution: .25 oz (5 grams)
- Balancing speed: 180 RPM
- Top weight locator (12 o’clock): Standard
- Bottom weight locator (6 o’clock): Standard
- Height, Guard Up: 66" (1,676 mm)
- Height, Guard Down: 53" (1,346 mm)
- Width: 54" (1,371 mm)
- Depth, Cover Up: 39" (990 mm)
- Depth, Cover Down: 40" (1,016 mm)
- Power Cord Length: 63" (1,600 mm)
- Inside & outside measuring: Standard
- Millimeter / inches selection: Standard
- Ounce / gram selection: Standard
- Wheel offset distance setting: Manual
- Self-calibration function: Standard
- Auto start: Standard
- Wheel spin braking: Automatic / Electronic
- Wheel holding manual brake pedal: Standard
- Centering collets included: 3 Standard / 1 Truck
- Wheel calipers: Standard
- Rear cone mount spring: Standard
- No-mar rear cone mount pressure cup: Standard
- Quick-release & mount hub nut: Standard
- Shipping Weight: 418 lbs. (190 kg)
- Shipping Dimensions: 44" x 30" x 46" (1,117 mm x 762 mm x 1,168 mm)
WHEEL WEIGHTS
Quick-Peel™ Segmented Adhesive Silver Steel Wheel Weights
Many states are banning the use of lead wheel weights. That’s where Ranger’s wheel weights come in. These steel weights come in silver and black and are reliable and affordable. Ranger has designed these weights to have less impact on the environment. They’re also resistant to corrosion.
Ranger’s .25 oz. wheel weights are perfectly sized, and they’re weighted for most wheel balancing applications. If you pair them with a Ranger wheel balancer, you’ll never use more weight than necessary for a job. Their adhesive is extra-sticky, which lessens the chance of the weight falling off the wheel, and it’ll improve your level of customer service. Customers will know the quality difference when you service their vehicle with Ranger wheel weights.
Features
- Silver powder-coated surface helps eliminate corrosion and staining of expensive wheels
- Strong adhesive backing for dependable attachment
- Quick-Peel™ liner for trouble-free use
- Lead-free, steel construction has less impact on the environment
- Meets national environmental laws and health and safety codes
- Designed to have same fit, function & look as OEM weights
- Narrow profile contours easier to OEM wheel shapes
- Slender profile and out-of-sight mounting capability enhance the looks of any wheel
- Low-profile design for increased clearance of close-proximity calipers or brake components
- Self-dispensing carton features Free-Glide™ center hub and nylon feeder for smooth, jam-free delivery
- Reduces inventory cost by eliminating traditional wheel weight inventories and requiring less floor space
Specifications
| Tape Width | 1/2” (13 mm) |
|---|
