Product Description

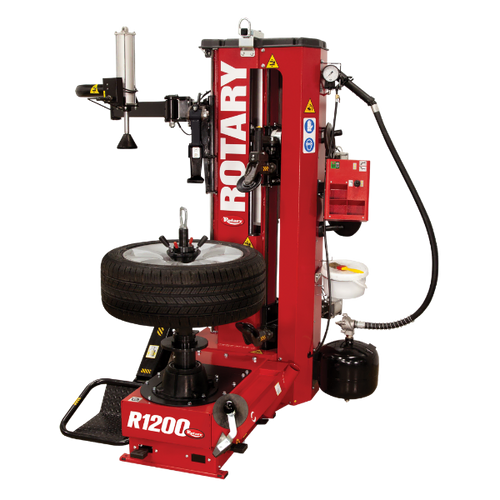

ROTARY R1200 Tire Changer, Leverless Pro Tire Changer
Rotary’s leverless dual bead-breaker changer provides your shop with a tire-changing powerhouse, keeping the most difficult-to-change wheels safe from damage. This changer has chain synchronized bead breaker arm(s) with power-assisted positioning. The mount/demount tool, upper and lower rollers easily index together with the same single control.
FEATURES
- Integrated pneumatic wheel lift
- 3-position pedestal with self-locking plate
- handle wheels with a 10” to 30” diameter
- Quick-lock rim clamping device with guard
- Centering adapter / double conic
- Rubber turntable guard
- Pin protectors for centering pulling unit
- Bead pusher to assist seating bead to rim
- Foot pedal controls for inflation, rotation and wheel lift
- Inflation station
- Storage cabinet
- Tire paste lubricant and brush
SPECIFICATIONS
| Clamping Range | 10" - 30" |
|---|---|
| Maxium Tire Width | 19"* |
| Maximum Tire Diameter | 45" |
| Variable Speed Rotation Motor | 2hp/1,5Kw inverter motor |
| Bead Breaker Movement | Automatic / Manual indent |
| Bead Breaking Force | 2,654 Ft/lbs / each roller |
| Voltage | 220v / 60Hz / 1ph |
| Recommended Air Supply | 115 - 145 PSI / 8-10 bar |
