Product Description

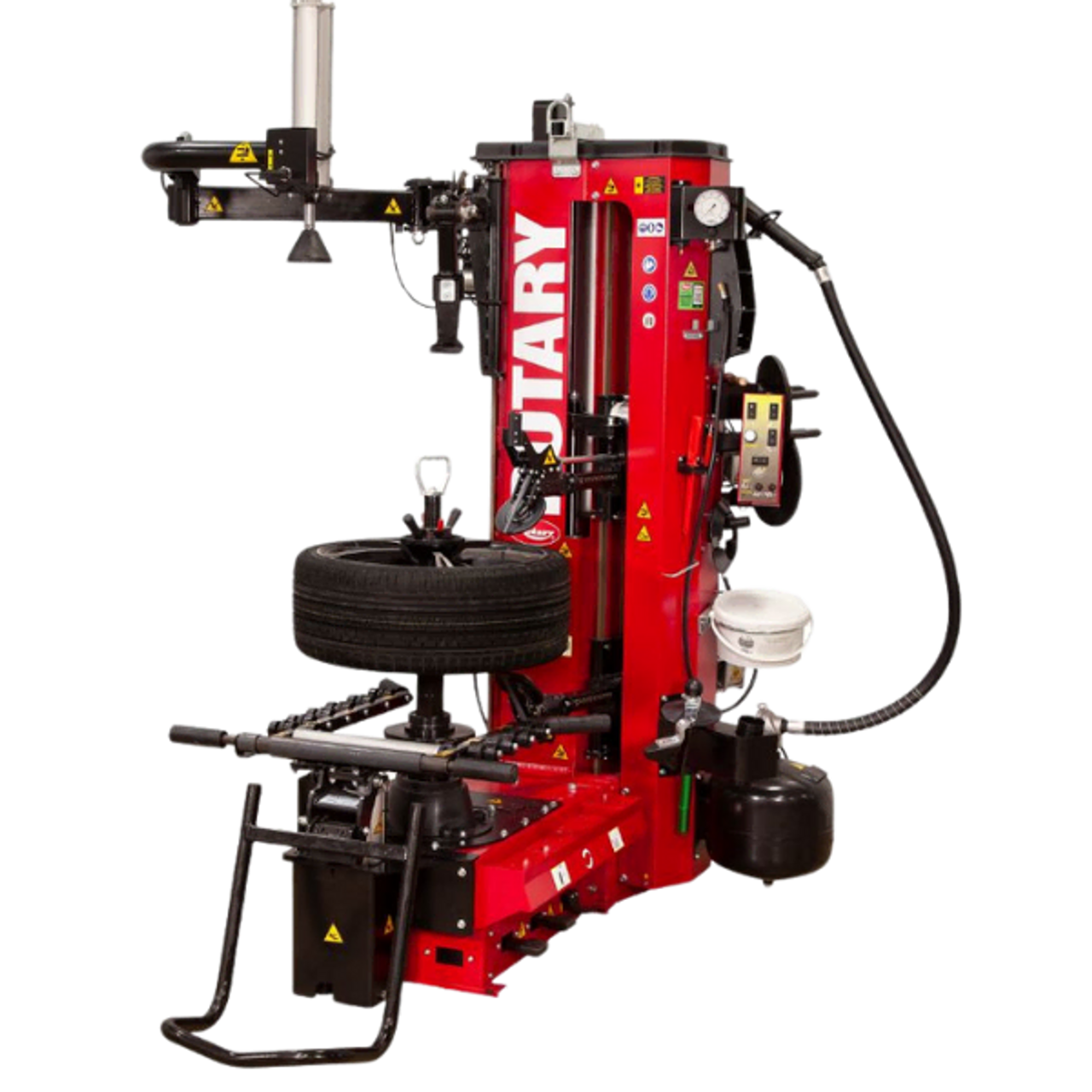

ROTARY R1250 Tire Changer, Leverless Pro Tire Changer
Rotary’s premium, center-locking, leverless tire changer requires no lifting or carrying. Get speed, safety, and accuracy like you’ve never seen and the easiest tire changes you’ll ever perform. Handle the most challenging wheel and tire combinations with a convenient front-loading wheel lift, dual bead rollers, laser-guided tool positioning, and patented, worry-free tire demounting. Ready to roll right out of the box.
FEATURES
- Integrated front loading wheel lift for greater ergonomics
- Quick-lock rim clamping device with cone guard
- Power-assisted bead mount / demount tool
- Rotating pneumatic top bead pressing tool
- Foot pedal controls for wheel lift, tire rotation, and inflation
- Storage cabinet
- Tire paste lubricant and brush
- Laser-guided positioning
- Tool position memory
- Tool home function
- Three-position pedestal
- Dual-bead rollers
SPECIFICATIONS
| Clamping Range | 10" - 30" |
|---|---|
| Maxium Tire Width | 19"* |
| Maximum Tire Diameter | 47" |
| Wheel Lift Capacity | 178 lbs |
| Maximum Torque | 120 kgm |
| Variable Speed Rotation Motor | 2hp/1/.5Kw inverter motor |
| Bead Breaking Force | 2,654 Ft/lbs / each roller (Bead Breaker Movement is Automatic with Position Switch Indent Feature |
| Voltage | 220v / 60Hz / 0,75kW / 1ph (Ships with NEMA L6 - 20 plug |
| Recommended Air Supply | 115 - 145 PSI / 8-10 bar |
