Product Description

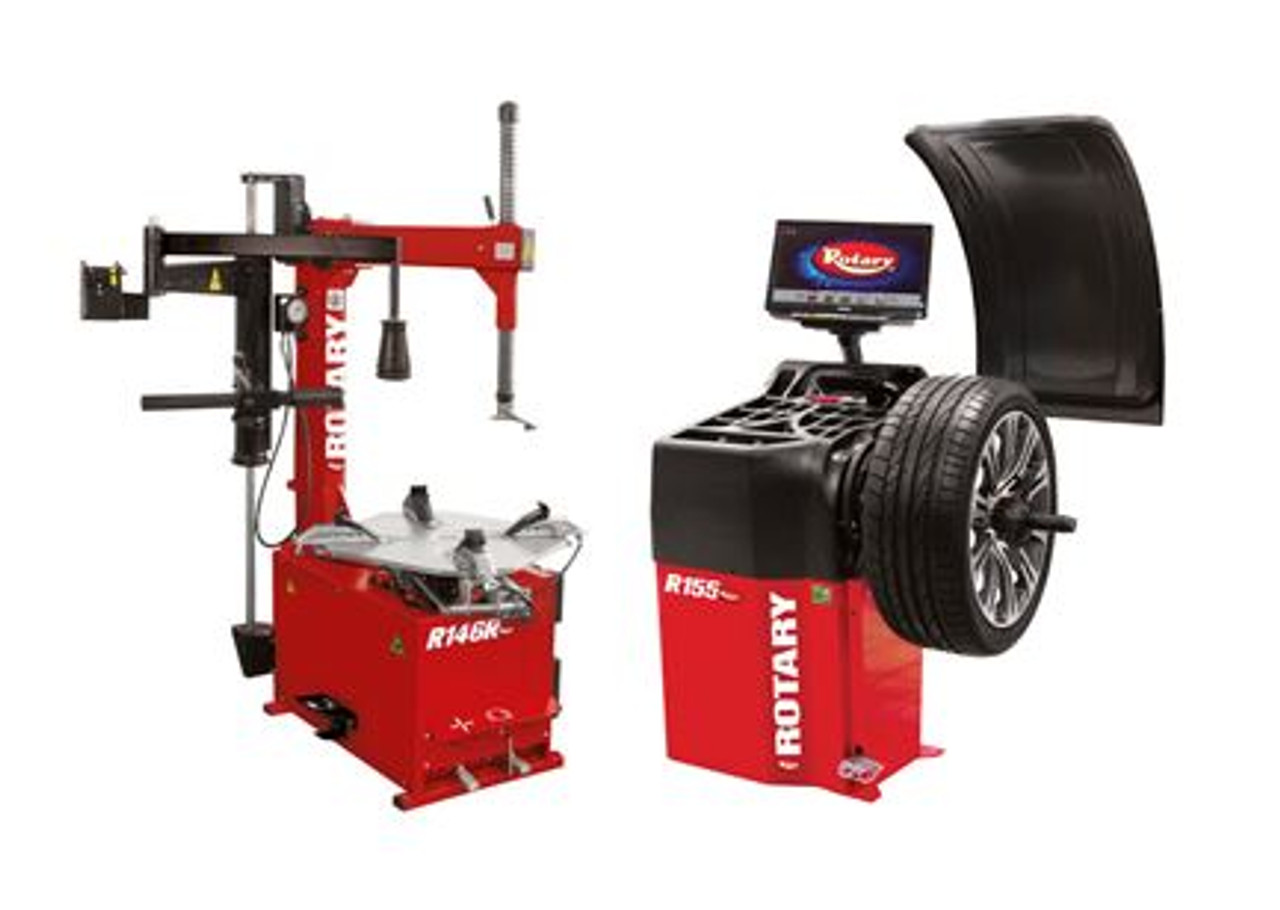

ROTARY R146RP Tire Changer + R155 Wheel Balancer Combo
R146RP Tire Changer Swingarm Pro
Tackle high-volume wheel service requests with Rotary’s updated R146RP Swingarm Tire Changer and ensure your shop’s up-and-coming technicians have everything they need to keep up with your high-performance pace while avoiding wheel damage.
FEATURES
- 110v drive motor supplies needed torque
- Gear box is supported by steel plates to avoid flex
- Valve tray
- Column-mounted storage case
- Tire paste lubricant and brush
- Air tank located inside column frees space behind machine
- Standard plastic mounting/demounting head
- Removable pedal assembly
- Tech-friendly double-acting side bead breaker
SPECIFICATIONS
| Technical Data | R146RP Super (R,RP,RA,RAP) |
|---|---|
| External clamping | 10″ – 26″ |
| Maximum torque to chuck | 885 Ft/L bs (1200 Nm) |
| Internal clamping | 12” – 28.5” |
| Max. tire diameter | 46” (1200 mm) |
| Max. tire width | 15” (380 mm) |
| Max. bead breaker opening | 15” (380 mm) |
| Bead breaker cylinder power at 145 psi | 6,745 Ft/L lbs (3060 kg) |
| Power supply | 110v / 1Ø / 60 Hz |
Site Requirements: 110V / 115-145 psi air supply

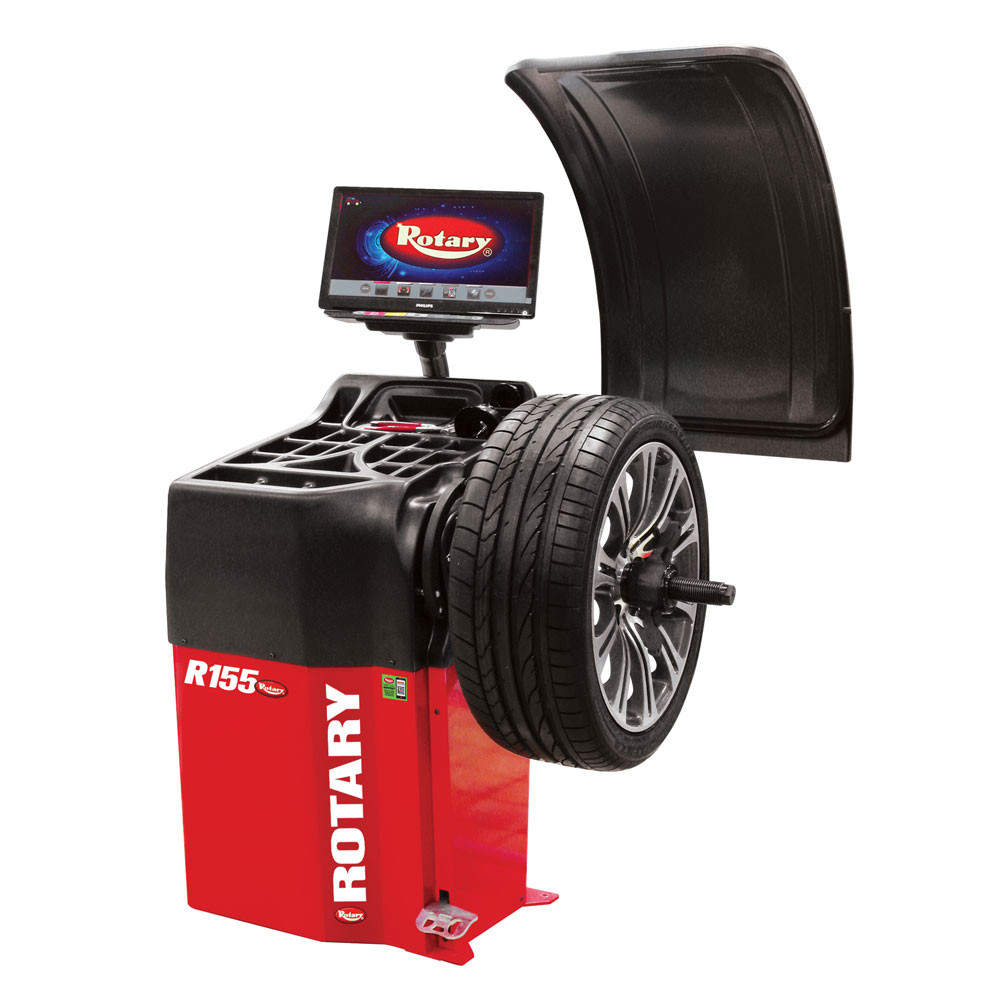

R155 Wheel Balancer, 3D Auto Technology
Engineered for fast-paced shops and fleets, Rotary’s R155 Wheel Balancer features everything the most demanding professionals would expect while maintaining an easy-to-learn interface so new technicians can get off the ground faster.
FEATURES
- Simple visual display
- Automatic program
- Internal data gauge
- Space saving footprint
- Fast balancing process with easy interactive inputs
- Guides tech during all phases of balancing process
- Automatice storage of distance and diameter
- Monitor keypad
- Laser blade pointer for exact positioning
- Width arm gauge
- Quick lock feature
SPECIFICATIONS
| Rim diameter | 10” - 30” |
| Rim width | 1.5” - 22” |
| Maximum tire diameter | 44” |
| Read out accuracy | 1 g |
| Cycle time | 6 seconds |
| Rotation speed | <100 |
| Max. assembly weight | 154 lbs. |
| Power supply | 110v / 1Ø / 60 Hz |
DIMENSIONS
- HEIGHT: 57.625” / 66.5” with hood up
- WIDTH: 50.25”
- DEPTH: 37.75”
