RANGER R980XR + LS43B + RL-8500 + Weights

Finance for as low as
Click Here To Apply!
Free Shipping

Product Description

If you can find a lower Ranger price, let us know, We will not be undersold!



Features & Specs

  • Wheel Clamping Method (Adjustable Clamps)
  • Table Clamping System
  • Bead Breaking System
  • Tool Holder
  • Inflation Gauge With Integrated Air Dump Valve
  • Inflation Pressure Regulator/Limiter
  • Water Filter
  • Oiler / Lubricator
  • Air Regulator
  • Breaker Bar
  • Large Soap / Lubricator Bucket
  • Brush
  • Alloy-Steel Mount/Demount Head
  • Plastic-Polymer Mount/Demount Head
  • Tower Design
  • Inflation Restraint Device
  • Bead Seating System
  • Tool Tray / Bin Storage
  • Motorcycle Turntable Clamps




Fixed Tower Design


Assist Type:

Single-Tower Assist





3 HP (220 VAC 50-60 HZ)

Drive System Type

Electric / Air

Air Requirement

140-165 PSI (10-11 BAR)

Wheel Clamping Method

4 Clamps - Internal / External

Table Clamping System

Dual Pneumatic Cylinders

Bead Breaking System

Pneumatic Blade / Dual

Tower Design

Rigid / Fixed

Power Assist Towers


Bead Seating System

Turbo Blast / Bead Seating

Internal Rim Clamping Capacity

10” – 30” (254 mm - 762 mm)

External Rim Clamping Capacity

9” – 28” (229 mm - 711 mm)

Turntable Tire Width Capacity (Mounting)

4” – 18” (102 mm – 457 mm)

Bead Breaker Tire Width Capacity (Demounting)

1.5” – 16” (38 mm – 406 mm)

Maximum Tire Diameter

50” (1,270 mm)

Shipping Weight

716 lbs. (324 kg)

Shipping Dimensions

43'' x 51'' x 44'' (1,092 mm x 1,295 mm x 1,117 mm)

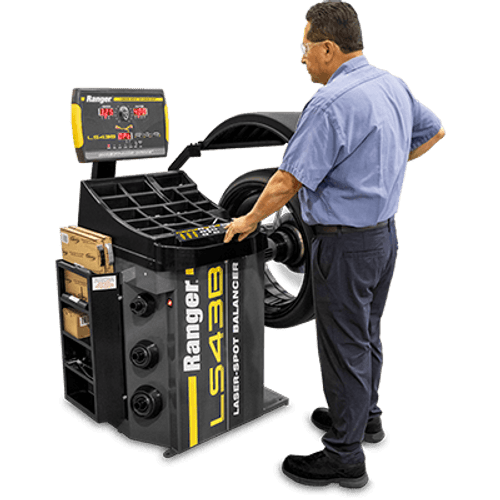

Features & Specs

  • Dynamic, Static, and Performance Alloy settings
  • Multi-user save function holds presets to increase productivity
  • Ergonomic control board and easy-to-read LED display
  • A simultaneous retrieval of static, dynamic and ALU1/ALU2/ALU3 data
  • Automatic rolling wheel parameter setting feature saves time, minimizes errors
  • Low-RPM balancing speed
  • Rapid 7-second cycle time
  • Automatic braking
  • Gram/ounce selection and millimeter/inch selection
  • Automatic round-off with top-dead-center weight position indicator
  • Tiered weight placement indicators help identify out-of-sight position weight placement (such as split-weight or hidden “behind-the-spoke” techniques)
  • Manual or automatic start when hood is lowered
  • Self-calibration function
  • High-volume top weight tray and side shelf storage gives you room to inventory a wide variety of wheel weights and tools
  • Newly designed side shelf features an open-top design that accommodates Ranger Quick-Peel™ adhesive tape weight convenient bulk rolls
  • Precision-machined, hardened-steel 36 mm shaft
  • Quick-release hub nut for dramatically reduced set-up times
  • ​Automatic brake hold wheels at precisely 12-o’-clock for proper weight placement
  • Side cone storage pegs keeps accessories readily available
  • “Open-side” hood design allows for a broader coverage of tire shapes and sizes



Auto & Light Truck

Data Entry

Data Entry:


Maximum tire diameter

47" (1,194 mm)

Max tire weight

145 lbs. (65 kg)

Max. wheel diameter

10" - 30" (254 mm - 672 mm)

Wheel width capacity

2" - 18" (51 mm - 457 mm)

Balancing increments

0.25 or 0.01 oz.

Balancing speed

180 RPM


+/- 1 gram (.035 oz.)

Working temperature

27°F (-5°C) – 82°F (50°C)

Drive system

Belt Drive

Balancing modes

Dynamic / Static / 3-Alloy

Top positioning weight locator


Inside & outside measuring


Millimeter / inches selection


Ounce / gram selection


Wheel offset distance setting


Self-calibration function


Auto start


Wheel spin braking

Automatic / Electronic

Wheel holding manual brake pedal


Centering cones included

3 Standard / 1 truck

Wheel calipers


Rear cone mount spring


No-mar rear cone mount pressure cup


Quick-release & mount hub nut


Shipping Weight

418-lbs. (189 kg)

Shipping Dimensions

44'' x 30'' x 46'' (1,117 mm x 762 mm x 1,168 mm)


Tape Wheel Weights

Features & Specs

  • Black and silver powder-coated surface helps eliminate corrosion and staining of expensive wheels
  • Strong adhesive backing for dependable attachment
  • Quick-Peel™ liner for trouble-free use
  • Lead-free, steel construction has less impact on the environment
  • Meets national environmental laws and health and safety codes
  • Designed to have same fit, function & look as OEM weights
  • Narrow profile contours easier to OEM wheel shapes
  • Slender profile and out-of-sight mounting capability enhance the looks of any wheel
  • Low-profile design for increased clearance of close-proximity calipers or brake components
  • Self-dispensing carton features Free-Glide™ center hub and nylon feeder for smooth, jam-free delivery
  • Reduces inventory cost by eliminating traditional wheel weight inventories and requiring less floor space


Combo (Silver & Black)


700 pcs. / Roll (1,400 total)


.25 oz

Tape Width

1/2” (13 mm)

Roll Weight

11 lbs. (5 kg) / Roll

RL-8500 Lathe

Features & Specs

  • Precision electric DC servo motors designed to meet the demanding requirements of industrial motion control
  • Quick-Change Adapter-Plus system with built-in springs eliminates the need for conventional bell clamps and cones
  • Works with hubless drums, rotors (center hole sized 2-5/32" – 4") and composite rotors (center hole sized 4" – 6.25")
  • The RL-8500 is equipped with features that help increase your service capability, like precision twin cutter tools and a quick drum-to-rotor changeover
  • Infinitely variable spindle and cross feed speed settings allow for quick rough and precision finish cuts
  • Simple ergonomic controls are designed for minimal operator movement
  • Legendary control makes unit easy to learn and master
  • The RL-8500 maintains accuracy year after year thanks to ruggedly constructed components like a hardened, precision ground spindle that resists grooving and makes boots a thing of the past
  • Massive tapered spindle bearings offer superior weight support during rotation
  • Exclusive "splash-lube" oil-feed system supplies a constant flow of oil to the bearings, making sure they provide years of trouble-free service
  • Serpentine belts provide a faster, quieter operation, reducing chatter and vibration
  • An independent cross feed motor eliminates the need for plastic or bronze shear gear that are expensive and time-consuming to replace
  • A convenient top storage tray means your popular adapters and tools are kept within short reach
  • Separate motors on the drum and rotor feed help maximize the main motor's efficiency
  • Our deluxe standard adapter package includes a Quick-Change hubless adapter system that makes mounting rotors and drums quick and easy
  • A variety of adapters let you machine all standard and composite rotors for foreign and domestic cars and light trucks
  • A 450-lb. cast iron body and a solid work bench reduce transient vibrations, ensuring a smooth uninterrupted surface finish with each pass
  • Easily change arbor speeds in seconds: choose 150 or 200 rpm, depending on the job
  • Positive rake cutter tip angle provides a one-pass finish virtually every time, allowing you to complete your work faster than inferior multi-pass lathes
  • Optional truck adapter kit available

Motor Drive Unit

115 – 230 VAC, 50-60 hz, 1 Ph, 20 amp

Max Rotor Thickness

2.5” (64 mm)

Max Rotor Diameter

17” (432 mm)

Brake Drum Diameter

6” – 28” (152 mm – 711 mm)

Max Load with Standard 1” Arbor

150 lbs. (68 kg)

Max Load with Optional 1-7/8” Truck Arbor

250 lbs. (113 kg)

Spindle Travel

6-7/8” (175 mm)

Spindle Speed

150 rpm – 200 rpm

Shipping Weight w/ Bench & Tools

688 lbs. (312 kg)

Shipping Dimensions

37'' x 46'' x 29'' (939 mm x 1,168 mm x 736 mm)
