Product Description

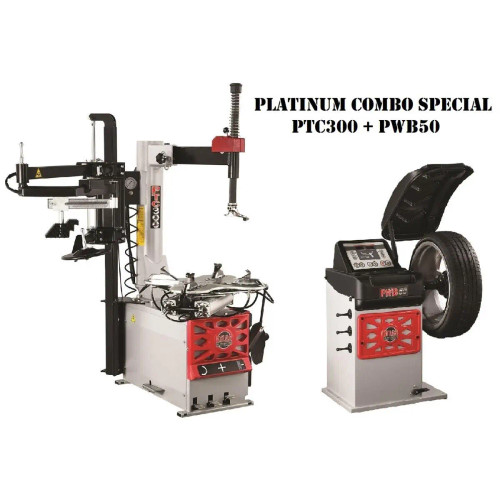

Atlas Equipment Platinum PTC300 Rim Clamp Tire Changer + PWB50 Wheel Balancer Combo Package
Platinum Tire Changer & Wheel Balancer Combo Package:
PART # ATEAP-TCWB-COMBO1

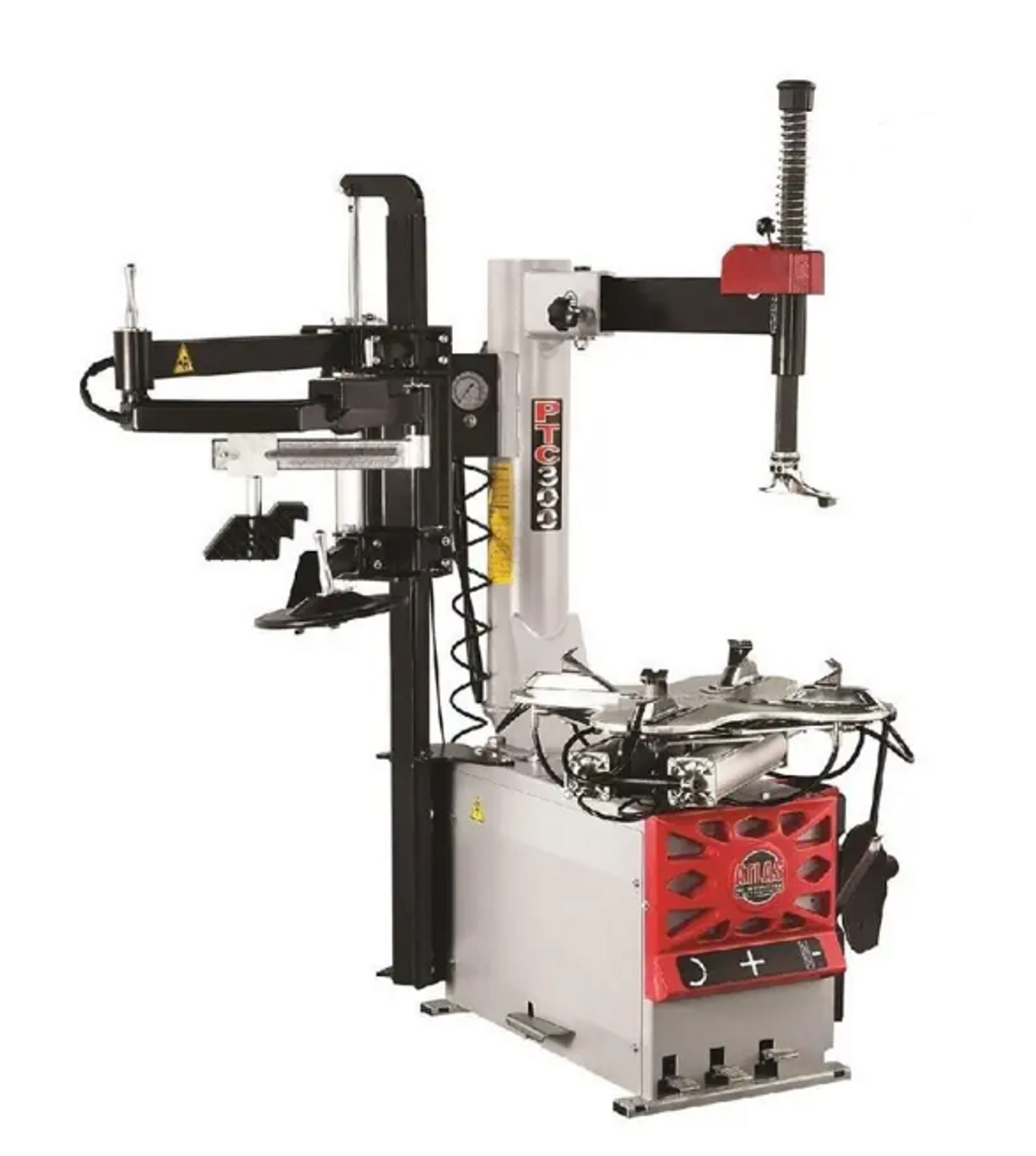

Atlas® Platinum PTC300 Tire Changer
- Rim Clamp/Swing Arm Tire Changer
- Extra Large Star Shaped Turntable
- Built-in "Beadblaster"
- Left Hand Assist Arm, Pressing/Lifting disk and Pressing Block
- Oiler, Filter, Regulator included (external air supply required)
- Plastic Protectors included
- Tire Tool, Lube Bucket, and Lube Brush Included
- Inflation Box w/ Gauge Included

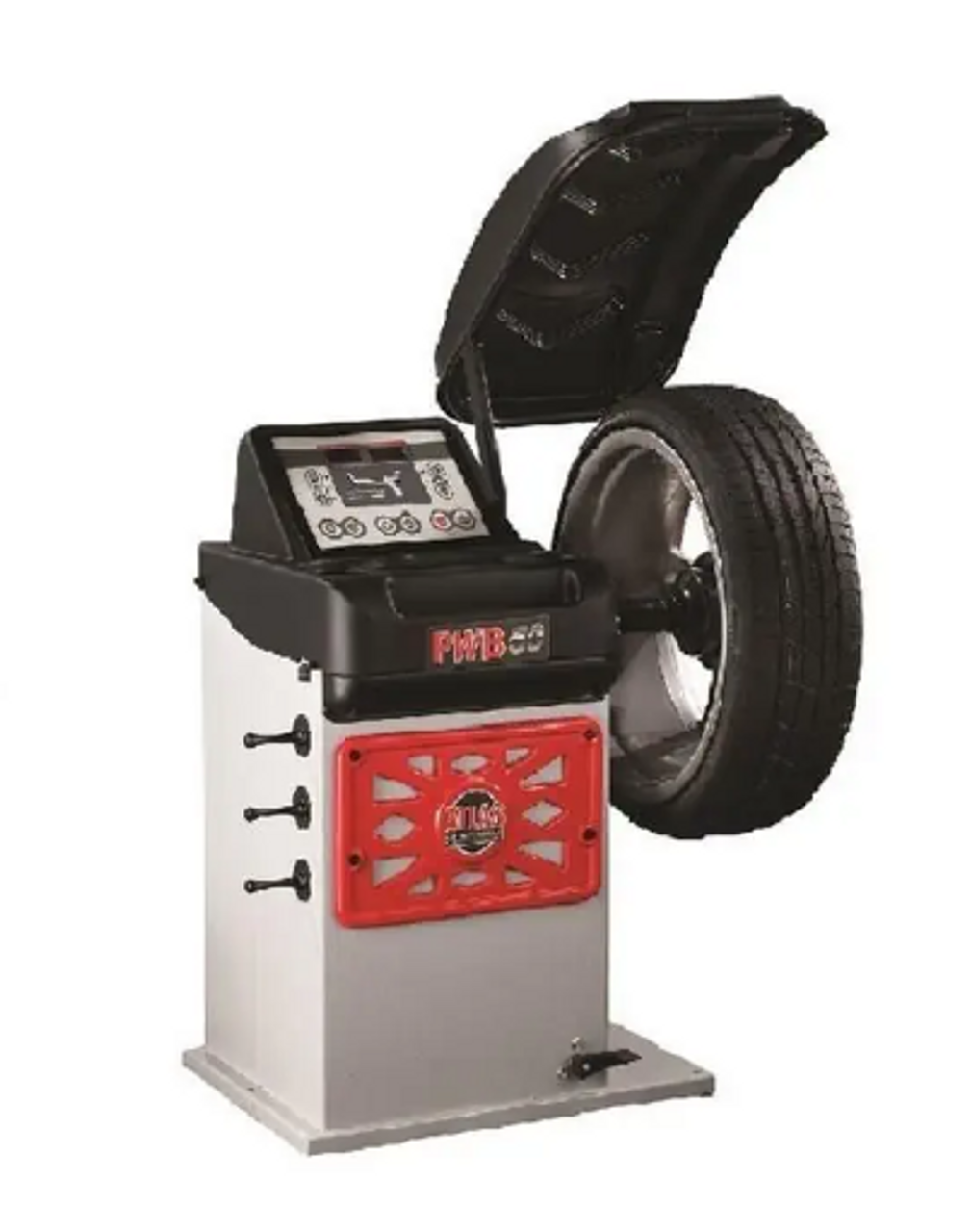

Atlas® Platinum PWB50-110V Wheel Balancer
- Computer Controlled Spin Balancer
- Static and dynamic balancing modes
- Automatic 2D Data Entry
- Optimatch, FES (Split), OPF (Opposite Position) Functions
- Self Diagnosis/Self Calibration
- Display in grams or ounces, in mm or inches
- 4 Centering Cones, Plastic Quick-Nut, Wheel Weight Pliers, & Wheel Measuring Calipers Included
This combination package includes the Atlas® Platinum PTC300 rim-clamp swing arm tire changer & the Atlas® Platinum PWB50-110V computerized spin balancer. This combination is perfect for commercial car repair shops and high volume tire shops. Both machines are 110volt operated, both are CE approved, and both carry the Atlas® Platinum 2 year parts only warranty. This part number is FREIGHT PREPAID.
Atlas® Platinum PTC500 Specifications
- External Locking Rim Dimensions: 10" to 24"
- Internal Locking Rim Dimensions: 12" to 26"
- Maximum Tire Diameter: 43"
- Maximum Wheel Width (Bead Breaker): 15"
- Turntable Rotating Speed: 7 rpm
- Bead Breaker: 6924 LB. Force
- Operating Pressure: 145 PSI
- Electric Requirement: 110volt
- Shipping Weight: 620 lbs
Atlas® Platinum PWB50-110V Specifications
- Max Tire Diameter: 43"
- Rim Sizes (Cars & Light Trucks): 10" - 30"
- Rim Width: 1 1/2" - 20"
- Shaft Size: 40mm
- Max Wheel Weight: 165 lbs.
- Balancing Speed: 130 rpm
- Data Entry: Automatic 2D
- Measurement: Standard or Metric
- Accuracy: 1 gram
- Weight Position Resolution: 1.4 Degrees
- Self Calibrating: YES
- Cycle Time: 7 seconds
- Electric Requirement: 110volt
- Shipping Weight: 230 lbs
