Product Description
| Frame Rack Model | FR-55 |
| Deck Design | Scissor Lift |
| Deck Length | 173.25″ |
| Deck Width | 37″ |
| Deck Height | 4.75″ – 63″ |
| Pull Force Per Tower | 10 Ton |
| Hydraulic Pressure | 10,000 PSI |
| Required Air Pressure | 100 – 120 PSI |
| Lifting Capacity | 5,500 lbs |
| Power | 220VAC – 20 AMP, 1PH |
| Ship Weight | 3,105 lbs |

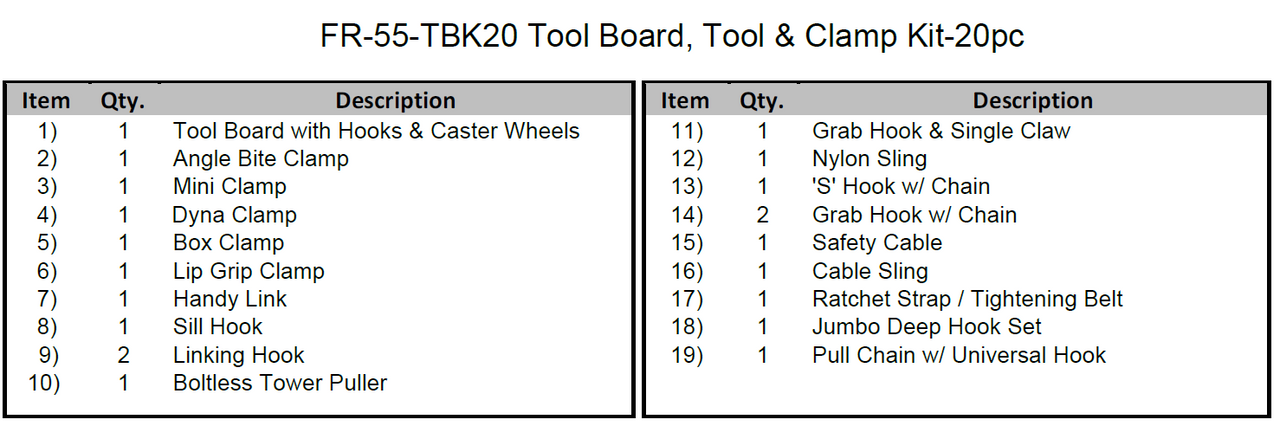

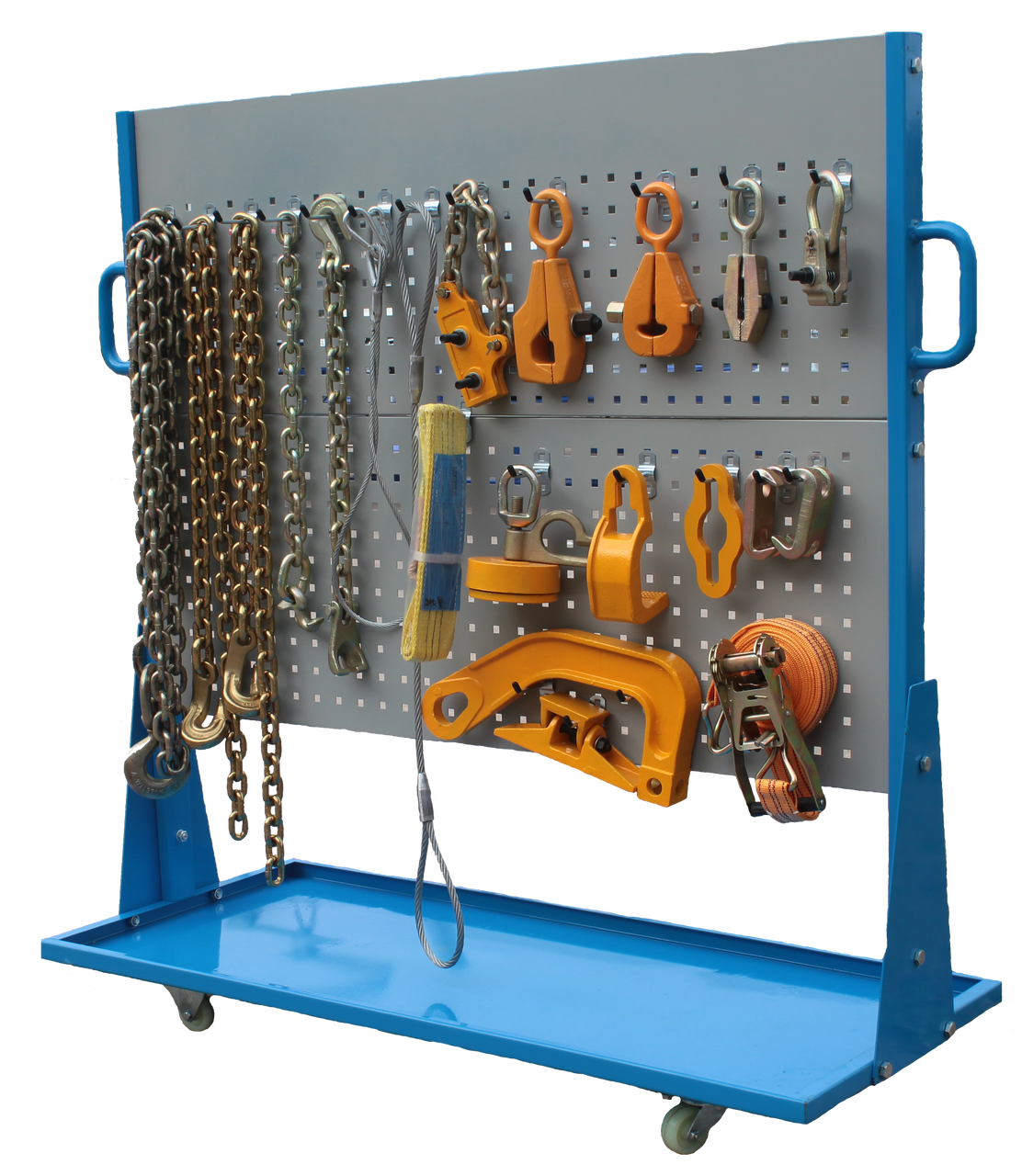

| Options | FR-55-TBK20 FR55 Series Tool Board Kit |
| FR-PROMEASRKIT Professional Measure Kit |
|
| FR-EWINCH Electric Winch |
|
| FR-BAGJACK Air Bag Jack |
- Scissor Style Operation with 5,500lbs. Capacity

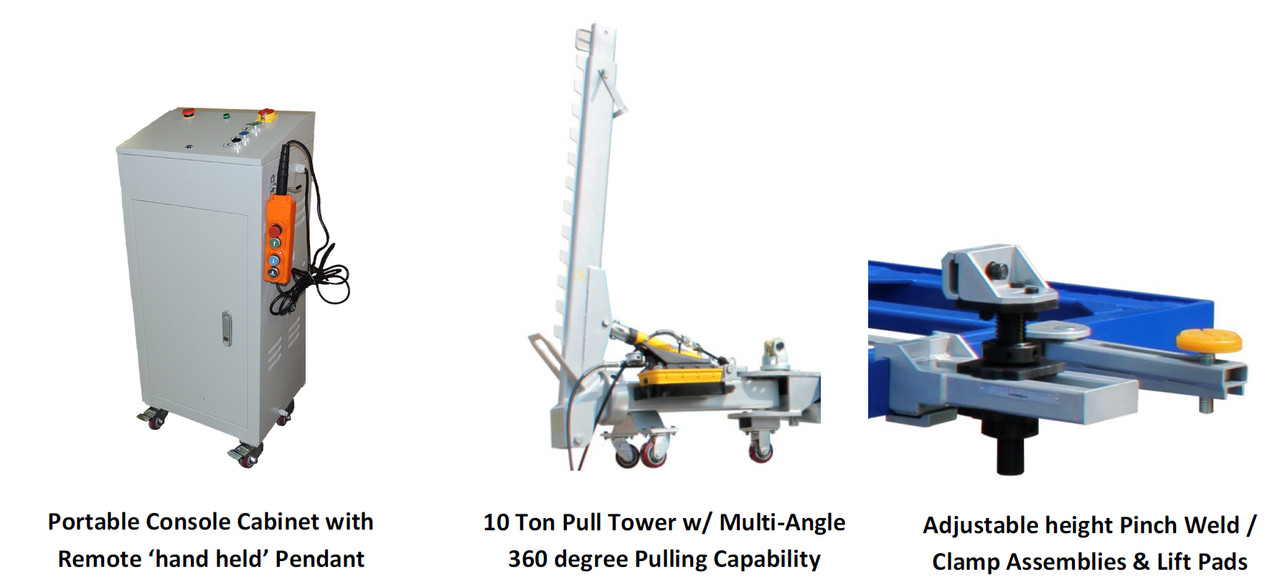

- Simple Console Operation for Raising and Lowering
- Universal Anchoring System with Adjustable Height Pinch Weld Assemblies
- One – 10 Ton Pulling Tower with Down Pull Roller
- Quick Disconnect Hydraulic Fittings
- One – 10′ Pulling Chains with Hook
- High Quality Air/Hydraulic Pump with Pressure Gauge
- Universal Wheel Stands
- Powder Coat Finish
https://tuxedoautoequip.com/wp-content/uploads/2019/12/FR-55-Manual-2015.pdf
