Product Description

If you can find a lower Ranger price, let us know, We will not be undersold!

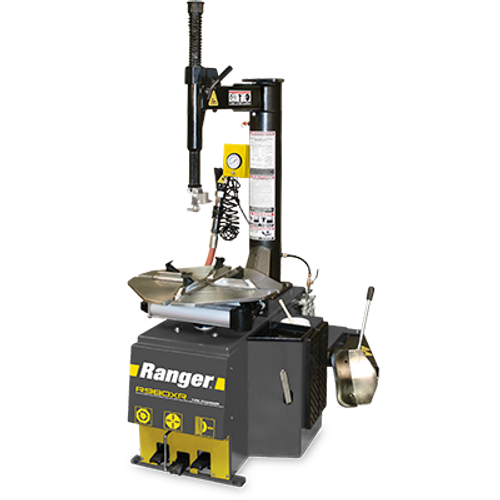

R980XR TIRE CHANGER

Features & Specs

• Wheel Clamping Method (Adjustable Clamps)
• Table Clamping System
• Bead Breaking System
• Tool Holder
• Inflation Gauge With Integrated Air Dump Valve
• Inflation Pressure Regulator/Limiter
• Water Filter
• Oiler / Lubricator
• Air Regulator
• Breaker Bar
• Large Soap / Lubricator Bucket
• Brush
• Alloy-Steel Mount/Demount Head
• Plastic-Polymer Mount/Demount Head
• Tower Design
• Inflation Restraint Device
• Bead Seating System
• Tool Tray / Bin Storage
• Motorcycle Turntable Clamps

Style

Style:

Fixed Tower Design

Assist

Assist Type:

Single-Tower Assist

Speed

Speed:

Standard

Motor

3 HP (220 VAC 50-60 HZ)

Drive System Type

Electric / Air

Air Requirement

140-165 PSI (10-11 BAR)

Wheel Clamping Method

4 Clamps - Internal / External

Table Clamping System

Dual Pneumatic Cylinders

Bead Breaking System

Pneumatic Blade / Dual

Tower Design

Rigid / Fixed

Power Assist Towers

N/A

Bead Seating System

Turbo Blast / Bead Seating

Internal Rim Clamping Capacity

10” – 30” (254 mm - 762 mm)

External Rim Clamping Capacity

9” – 28” (229 mm - 711 mm)

Turntable Tire Width Capacity (Mounting)

4” – 18” (102 mm – 457 mm)

Bead Breaker Tire Width Capacity (Demounting)

1.5” – 16” (38 mm – 406 mm)

Maximum Tire Diameter

50” (1,270 mm)

Shipping Weight

716 lbs. (324 kg)

Shipping Dimensions

43'' x 51'' x 44'' (1,092 mm x 1,295 mm x 1,117 mm)

LS43B WHEEL BALANCER SPECIFICATIONS

Features & Specs

• Dynamic, Static, and Performance Alloy settings
• Multi-user save function holds presets to increase productivity
• Ergonomic control board and easy-to-read LED display
• A simultaneous retrieval of static, dynamic and ALU1/ALU2/ALU3 data
• Automatic rolling wheel parameter setting feature saves time, minimizes errors
• Low-RPM balancing speed
• Rapid 7-second cycle time
• Automatic braking
• Gram/ounce selection and millimeter/inch selection
• Automatic round-off with top-dead-center weight position indicator
• Tiered weight placement indicators help identify out-of-sight position weight placement (such as split-weight or hidden “behind-the-spoke” techniques)
• Manual or automatic start when hood is lowered
• Self-calibration function
• High-volume top weight tray and side shelf storage gives you room to inventory a wide variety of wheel weights and tools
• Newly designed side shelf features an open-top design that accommodates Ranger Quick-Peel™ adhesive tape weight convenient bulk rolls
• Precision-machined, hardened-steel 36 mm shaft
• Quick-release hub nut for dramatically reduced set-up times
• ​Automatic brake hold wheels at precisely 12-o’-clock for proper weight placement
• Side cone storage pegs keeps accessories readily available
• “Open-side” hood design allows for a broader coverage of tire shapes and sizes

Style:

Auto & Light Truck

Data Entry:

Automatic

Maximum tire diameter

47" (1,194 mm)

Max tire weight

145 lbs. (65 kg)

Max. wheel diameter

10" - 30" (254 mm - 672 mm)

Wheel width capacity

2" - 18" (51 mm - 457 mm)

Balancing increments

0.25 or 0.01 oz.

Balancing speed

180 RPM

Accuracy

+/- 1 gram (.035 oz.)

Working temperature

27°F (-5°C) – 82°F (50°C)

Drive system

Belt Drive

Balancing modes

Dynamic / Static / 3-Alloy

Top positioning weight locator

Standard

Inside & outside measuring

Standard

Millimeter / inches selection

Standard

Ounce / gram selection

Standard

Wheel offset distance setting

Manual

Self-calibration function

Standard

Auto start

Standard

Wheel spin braking

Automatic / Electronic

Wheel holding manual brake pedal

Standard

Centering cones included

3 Standard / 1 truck

Wheel calipers

Standard

Rear cone mount spring

Standard

No-mar rear cone mount pressure cup

Standard

Quick-release & mount hub nut

Standard

Shipping Weight

418-lbs. (189 kg)

Shipping Dimensions

44'' x 30'' x 46'' (1,117 mm x 762 mm x 1,168 mm)

Tape Wheel Weights

Features & Specs

• Black and silver powder-coated surface helps eliminate corrosion and staining of expensive wheels
• Strong adhesive backing for dependable attachment
• Quick-Peel™ liner for trouble-free use
• Lead-free, steel construction has less impact on the environment
• Meets national environmental laws and health and safety codes
• Designed to have same fit, function & look as OEM weights
• Narrow profile contours easier to OEM wheel shapes
• Slender profile and out-of-sight mounting capability enhance the looks of any wheel
• Low-profile design for increased clearance of close-proximity calipers or brake components
• Self-dispensing carton features Free-Glide™ center hub and nylon feeder for smooth, jam-free delivery
• Reduces inventory cost by eliminating traditional wheel weight inventories and requiring less floor space

Color

Combo (Silver & Black)

Count

700 pcs. / Roll (1,400 total)

Weight

.25 oz

Tape Width

1/2” (13 mm)

Roll Weight

11 lbs. (5 kg) / Roll
