Product Description

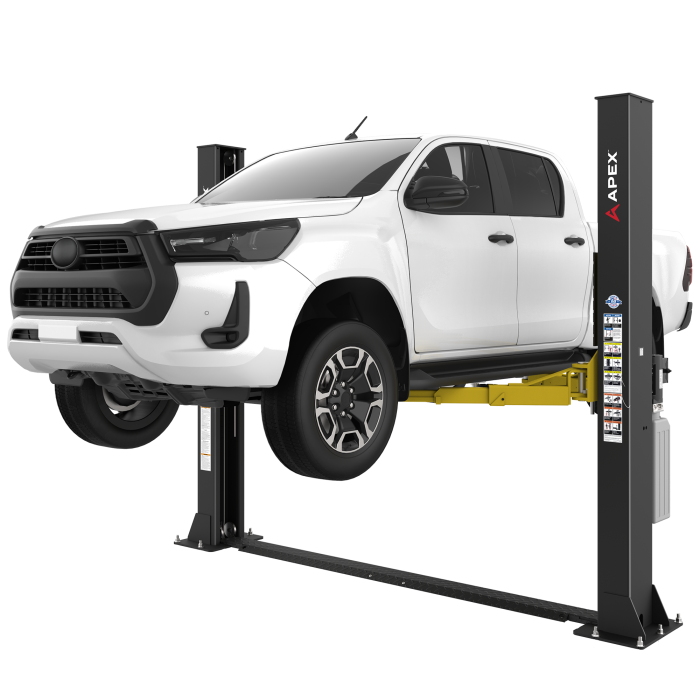

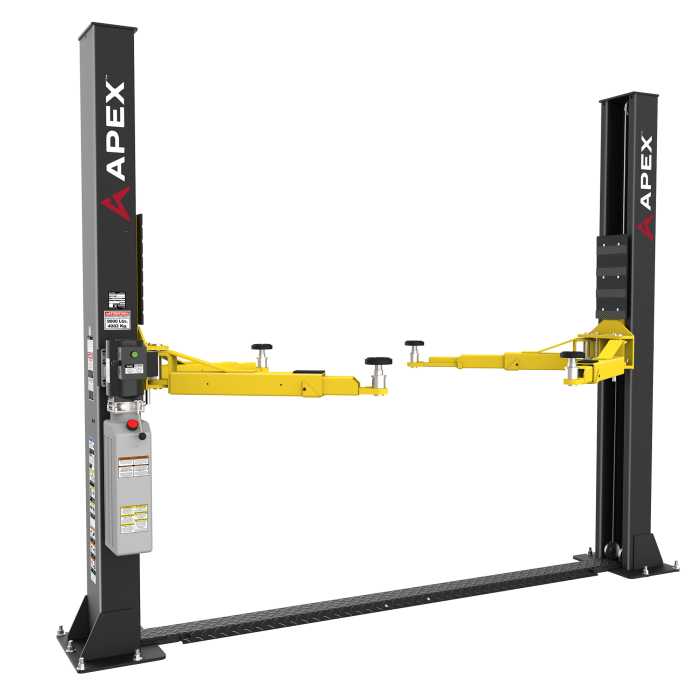

BENDPAK: APEX AL9LC Two Post Car Lift - 9,000-Lb Capacity - Floorplate
The APEX AL9LC is a 9,000-lb floorplate two-post lift engineered for shops and serious garages that need professional lifting capability in low-ceiling environments. Featuring dual symmetric and asymmetric arm configurations, long-reach telescoping arms, and a rugged chain-over lifting system, the AL9LC delivers stable, confident performance for a wide range of vehicles. Previously sold under the GrandPrix brand, the AL9LC now carries the APEX name while retaining the same proven design, performance, and BendPak-backed support.
FEATURES
- 9,000-lb Lifting Capacity
Handles passenger vehicles, performance cars, and light trucks with confidence. - Floorplate Two-Post Design
Ideal for low-ceiling garages while maintaining full lifting capability. - Symmetric and Asymmetric Arm Configurations
Allows flexible arm positioning for faster vehicle setup. - Triple-Telescoping Front Arms and Extended Rear Arms
Provides exceptional reach for a wide range of wheelbases. - Automatic Safety Locks Every 3 Inches
Ensures secure load holding throughout the lift range. - Automatic Arm Restraints
Prevent unintended arm movement during service. - Heavy-Duty 6" x 6" Tubular Steel Carriage
Delivers long-term structural strength and durability. - Chain-Over Lifting System
Industrial-grade leaf chain engineered for reliable, low-maintenance operation. - Oversized Base Plates
Improve stability and evenly distribute vehicle weight. - 36-Month Limited Warranty
Industry-leading coverage backed by BendPak support.
SPECIFICATIONS
Lifting Capacity: 9,000 lbs. (4,082 kg)
Max. Capacity / Front Axle: 4,500 lbs. (2,045 kg)
Max. Capacity / Rear Axle: 4,500 lbs. (2,045 kg)
Height Overall: 109.5" (2,781 mm)
Width Overall (at Baseplate): 137.25" (3,486 mm)
Width Outside of Columns: 127.5" (3,238 mm)
Floor To Driveover Height: 1.25" (30 mm)
Width Inside Columns: 113.5" (2,880 mm)
Front Arm Reach (Min.): 22.5" (571 mm)
Front Arm Reach (Max.): 43.25" (1,099 mm)
Rear Arm Reach (Min.): 33.5" (845 mm)
Rear Arm Reach (Max.): 53.25" (1,353 mm)
Min. Pad Height: 3.9" (100 mm)
Rise: 70" (1,778 mm)
Max. Lift Height (Pad + 63mm Adapt.): 76.5" - 78.5" (1,943 - 1,994 mm)
Drive-Thru Clearance: 103" (2,618 mm)

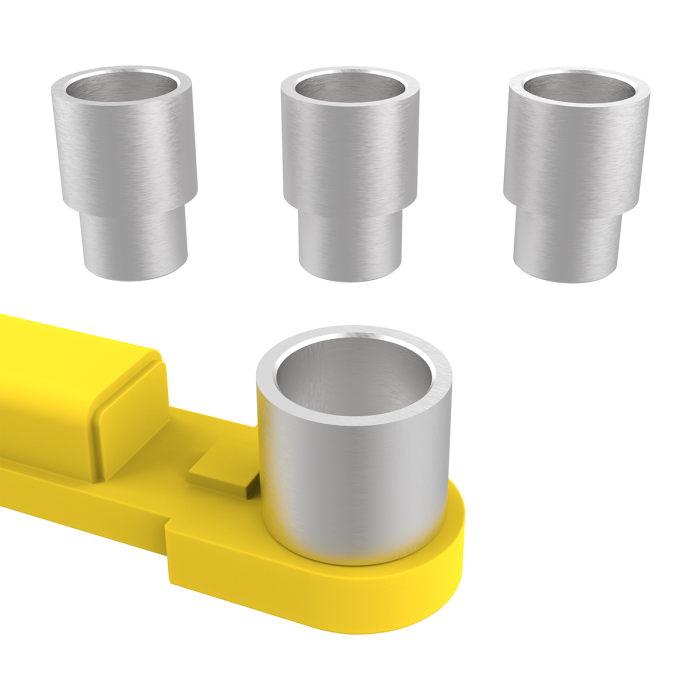

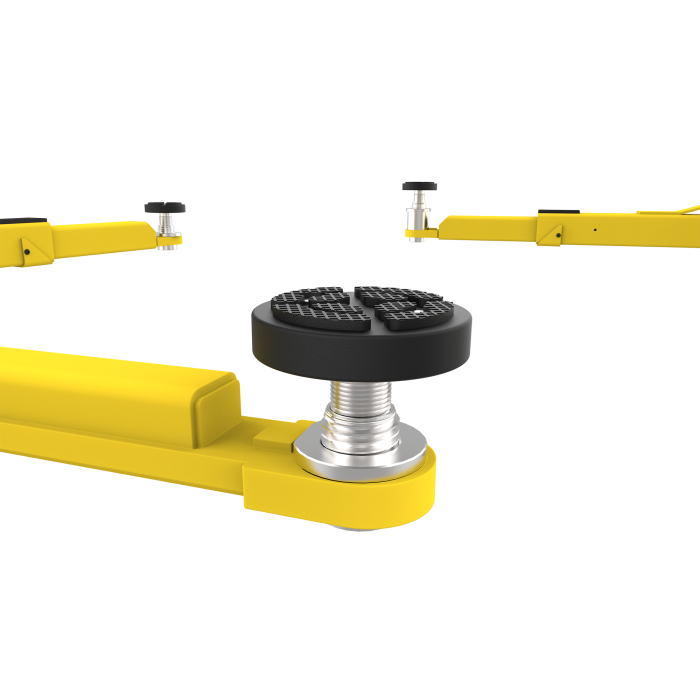

Screw Pad Adjustment: 2" (51 mm)
Motor: 220 VAC / 60Hz / 1 Ph
Time of Full Rise: 65 seconds
Max. Load Per Arm: 2,250 lbs. (1,023 kg)
