Product Description
DISCONTINUED!! REPLACED BY MAXX 80

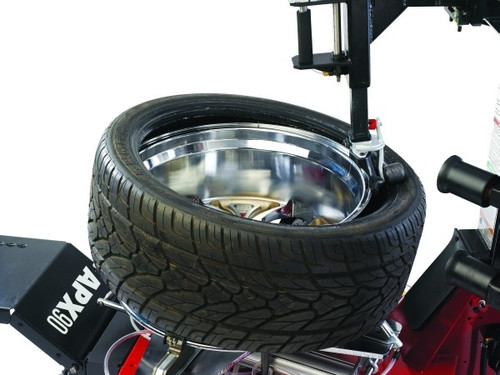

The Coats Rim Clamp tire changer has become the industry standard due to its legacy of durability, reliability, and upgradability. The X-Series is an upgraded version of the Coats Rim Clamp changer you’ve always known and trusted with new features to make it the best platform in the business, operating with the speed you expect from a swing arm tire changer.
FEATURES
Bead Loosener – Hand Actuated
The Bead Loosener offers point of use controls to the technician, providing direct line of site, reducing the risk of wheel damage.
Best-in-Class Clamping Capacity
External clamping from 6" up to 28" with Grip Max® Plus clamps upgrade.
Robo-Arm®
The Robo-Arm provides direct pressure to create a bead lock and keep the bead in the drop center during the tire mount process.
SPECS
| Wheel Handled | Alloy and Steel for Car and Light Truck |
| Rim Diameter | 6" - 24" External |
| Max Tire Diameter | 50" |
| Max Rim Width | 14" |
| Bead Loosening System | Hand Control, Up to 14" Wide |
| Wheel Clamping Method | 4 Four Clamps, Air Cylinder Operated |
| Mount/Demount Mechanism | Swings Away for Better Access & Durability |
| Helper Devices | Robo-Arm® (18" of Automated Vertical Stroke) wide |
| Bead Seating Air Volume | 5.4 Gallons in Tower |
| Inflation Gauge | 0 - 60 psi |
| Air Supply Gauge | 0 - 300 psi |
| Air Drive System | 1.5 HP Air Motor, 110 - 175 psi, 15 scfm (Air Model Only) |
| Electric Drive System | 1 HP Electric Motor, 115 V, 60 Hz, 15amp (Electric Model Only) |
| Footprint | 49"w x 48"d x 85"h |
| Ship Weight | 700 lbs |
| Bead Seating Reservoir | Vertical 3.8 Gal. in Tower |
| Part Number | Air Model: 80080XAH3 Electric Model: 80080XEH3 |
